Rough Terrain Trucks
Product Model :
|

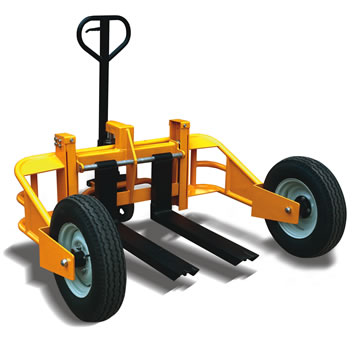

Rough Terrain Trucks RP.A series
* Great equipment to move heavy loads up till 1250kg.
* Ergonomic design of the frame to reduce the operation effort.
* Meanwhile the truck is robust enough for the purpose to work outside such as builders yard,
garden centers where there are only an occasional need for moving pallets by forklifts or where
no ordinary forklift or even pallet truck can go. The fork is adjustable for special dimension pallet.
|
Model |
|
RP1000 |
RP1250A |
|
Rated Capacity |
(kg) |
1000 |
1250 |
|
Max. Fork Height |
(mm) |
240 |
240 |
|
Min. Fork Height |
(mm) |
70 |
70 |
|
Fork Length |
(mm) |
800(860) |
800(860) |
|
Load Length |
(mm) |
400(430) |
400(430) |
|
Adjustable Fork Width |
(mm) |
216-680 |
256-680 |
|
Individual Fork Width |
(mm) |
100 |
120 |
|
Distance inside the Front Wheel |
(mm) |
1230 |
1230 |
|
Axle Distance between front wheel |
(mm) |
973 |
973 |
|
Front Load Wheel |
Dia.×Width (mm) |
Φ568×145 |
Φ568×145 |
|
Rear Steering Wheel |
Dia.(mm) |
Φ250 |
Φ250 |
|
Turn Radius |
Wa(mm) |
1500 |
1500 |
|
Overall Size |
L×W×H |
1406×1670×1280 |
1406×1670×1280 |
|
Net Weight |
(kg) |
210 |
238 |
