Low Profile Lift Table
Product Model :
|

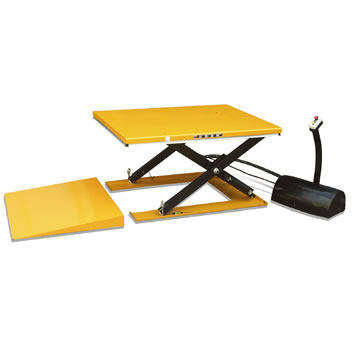

Low Profile Lift Table HY Series
* Heavy duty design with larger platform
* These tables achieve a low closed height, eliminating the need for a pit installation.
* They are manufactured to all European safety standards including EN1570:1999.
* Remote power pack with pedestal and controls, protected to IP54.
* Upper platform fitted with safety perimeter to prevent descent on contact with obstructions.
* 24V control box with UP and DOWN buttons and emergency stop.
* External power pack equipped with a relief valve against overloading and a compensated flow valve for controlling lowering speed. Power supply are AC 380V/50HZ/3phase.
* Hose burst safety valve to stop the lift table lowering in case of hose breakage.
* Removable lifting eyes to facilitate handling and installation of the lift table.
* Oiless bushings on pivot points.
* Loading ramp is a standard equipment.
|
Model |
Capacity |
Platform Size |
Min. Height |
Max. Height |
Stroke |
Lifting Time |
Power Pack |
Net Weight |
|
|
(kg) |
LXW(mm) |
(mm) |
(mm) |
(mm) |
(second) |
|
(kg) |
|
HY1001 |
1000 |
1450×1140 |
85 |
860 |
775 |
25 |
380V/50HZ,AC 0.75kw |
357 |
|
HY1002 |
1000 |
1600×1140 |
85 |
860 |
775 |
25 |
380V/50HZ,AC 0.75kw |
364 |
|
HY1003 |
1000 |
1450×800 |
85 |
860 |
775 |
25 |
380V/50HZ,AC 0.75kw |
326 |
|
HY1004 |
1000 |
1600×800 |
85 |
860 |
775 |
25 |
380V/50HZ,AC 0.75kw |
332 |
|
HY1005 |
1000 |
1600×1000 |
85 |
860 |
775 |
25 |
380V/50HZ,AC 0.75kw |
352 |
|
HY1501 |
1500 |
1600×800 |
105 |
870 |
775 |
30 |
380V/50HZ,AC 1.5kw |
367 |
|
HY1502 |
1500 |
1600×1000 |
105 |
870 |
775 |
30 |
380V/50HZ,AC 1.5kw |
401 |
|
HY1503 |
1500 |
1600×1200 |
105 |
870 |
775 |
30 |
380V/50HZ,AC 1.5kw |
415 |
|
HY2001 |
2000 |
1600×1200 |
105 |
870 |
775 |
35 |
380V/50HZ,AC 2.2kw |
419 |
|
HY2002 |
2000 |
1600×1000 |
105 |
870 |
775 |
35 |
380V/50HZ,AC 2.2kw |
405 |
