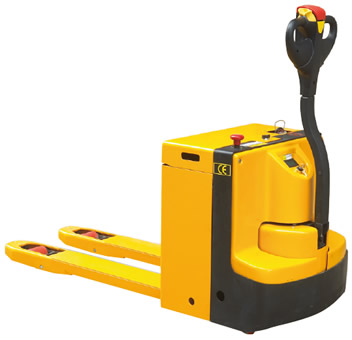

Powered Pallet Truck
Product Model :
|
Powered Pallet Truck TE / TK series
Top Quality Range
Heavy Duty Design
* Maneuver loads up ramps and dockboards effortlessly.
* Compact design combines with new technology, making this pallet truck ideal for narrow, cramped
aisles. shortest head length in the market permits the possible maneuverability.
* Smooth stepless speed control with European technology.
* Power unit with European technology.
* Powerful traction battery.
* DC driving motor with European technology.
* Drive unit with electromagnetic brake.
* Conforms to EN1726 and EN1175-1.

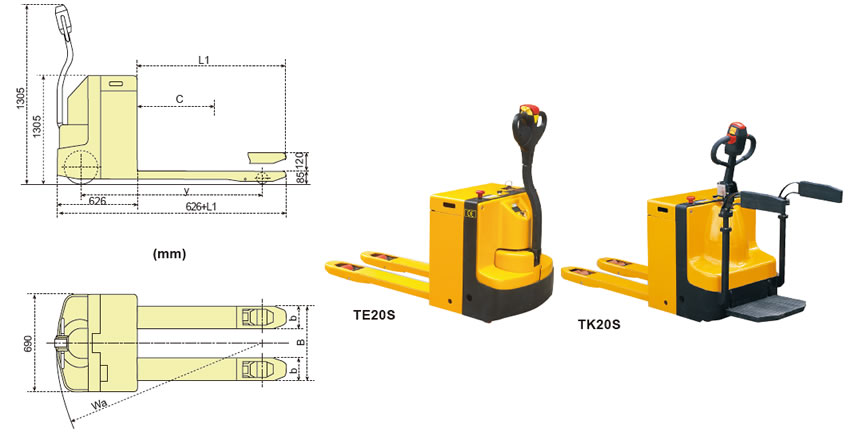

.jpg)
|
Model |
|
TE20S |
TE20L |
TK20S |
TK20L |
|
Type |
|
without platform |
with platform |
||
|
Capacity |
(kg) |
2000 |
2000 |
||
|
Load Center |
C (mm) |
600 |
600 |
||
|
Max. Fork Height |
H (mm) |
205 |
205 |
||
|
Min. Fork Height |
h (mm) |
85 |
85 |
||
|
Fork Length |
L1 (mm) |
1150 |
1150 |
||
|
Individual Fork Width |
b (mm) |
160 |
160 |
||
|
Wheel Base |
y (mm) |
1406 |
1406 |
||
|
Turning Radius |
Wa (mm) |
1608 |
1946 |
||
|
Traveling Speed With/Without Load |
(Km/h) |
3.6/5.4 |
3.6/5.4 |
||
|
Lifting Speed With/Without Load |
(mm/s) |
22/32 |
22/32 |
||
|
Lowering Speed With/Without Load |
(mm/s) |
50/55 |
50/55 |
||
|
Drive Wheel |
|
1200W, Φ250mm |
1200W, Φ250mm |
||
|
Power Unit (lifting motor) |
(W/V) |
800/24 |
800/24 |
||
|
Traction Battery |
|
24V/210Ah, 185kg |
24V/210Ah, 185kg |
||
|
Battery Charger |
|
25A/24V |
25A/24V |
||
|
Overall Dimension |
L×W×H (mm) |
1781×690×1305 |
2125×690×1305 |
||
|
Fork Overall Width |
B (mm) |
530 |
680 |
530 |
680 |
|
Net Weight |
(kg) |
324 |
329 |
338 |
343 |
|
Tiller |
|
O |
O |
O |
O |
| O = Option | |||||
