Crane Fork
Product Model :
  • CK10
  • CK20
  • CK30
  • CK50
  • CY10
  • CY20
  • CY30
  • CY50

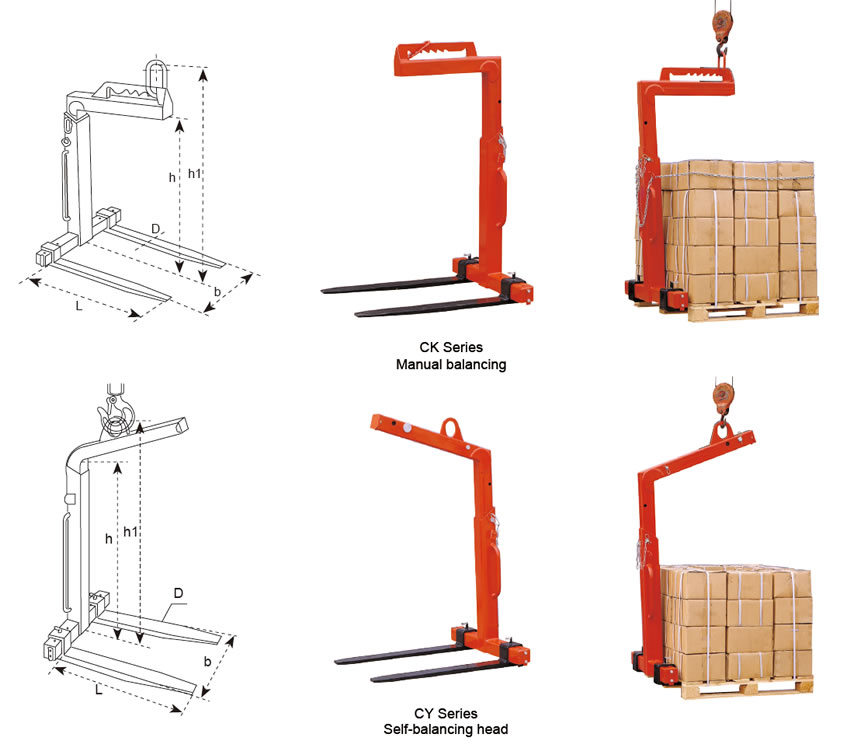

Crane Fork       CK / CY series

* No slings or chains necessary.
* Crane operator will not need to leave cab of lorry or crane.
* Forks will remain horizontal when loaded and unloaded.
* Adjustable fork width.
* Adjustable height.

Model

Work Load Limit

Adjustable Fork Width

Hook Height

Effective Height

Fork Length

Fork Cross

Overall Size

Net Weight

WLL (tonne)

b (mm)

h1 (mm)

h (mm)

L (mm)

D (mm)

L×W×H (mm)

(kg)

CK10

1

350-900

1390-1890

1100-1600

1000

100×30

1120×920×1390

130

CK20

2

400-900

1640-2340

1300-2000

1000

120×40

1140×920×1640

200

CK30

3

450-900

1670-2370

1300-2000

1000

120×50

1140×920×1670

250

CK50

5

530-1000

1700-2400

1300-2000

1000

150×60

1160×1020×1700

370

CY10

1

350-900

1420-1920

1100-1600

1000

100×30

1120×920×1530

140

CY20

2

400-900

1655-2355

1300-2000

1000

120×40

1140×920×1775

220

CY30

3

450-900

1720-2420

1300-2000

1000

120×50

1140×920×1850

280

CY50

5

530-1000

1710-2410

1300-2000

1000

150×60

1160×1020×1850

380
