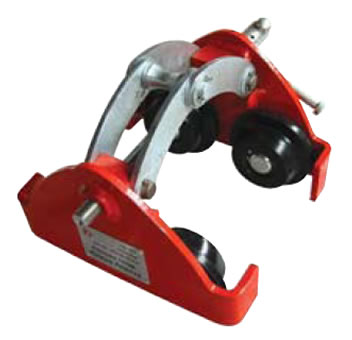

Trolley Clamp
Product Model :
|
Trolley Clamp TC series
* The easy installation to any beam makes it suitable for fixing to any moving hoist, pulleys and loads.
* It can be adjusted quickly to the beam width by turning the main spindle.
* Safety is ensured by the special locking lever.
* The spindle and snap-pin stops are galvanized to protect against corrosion.
* Conforms to CE safety standard.

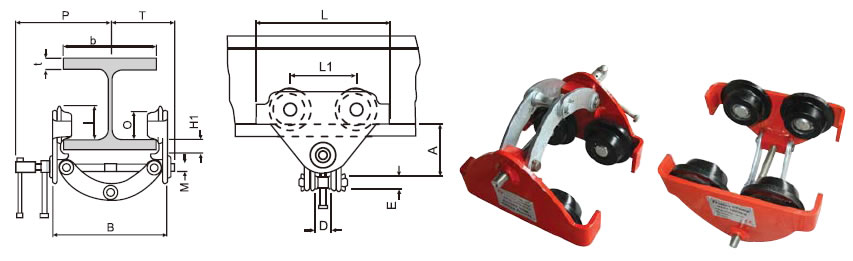

| Model |
Capacity |
Flange Width |
A |
G |
E |
H1 |
H |
L |
L1 |
M |
R |
C |
D |
t max |
Net Weight |
|
(kg) |
b (mm) |
(mm) |
(mm) |
(mm) |
(mm) |
(mm) |
(mm) |
(mm) |
(mm) |
(mm) |
(mm) |
(mm) |
(mm) |
(kg) |
|
|
TC10A |
1000 |
61-151 |
81-108 |
26 |
22 |
20 |
53 |
160 |
75 |
M12 |
46 |
153 |
105 |
15 |
2.5 |
|
TC20A |
2000 |
74-200 |
89-154 |
42 |
20 |
30 |
71.5 |
260 |
130 |
M18 |
60 |
205 |
139 |
25 |
9.9 |
|
TC20B |
2000 |
199-300 |
135-190 |
42 |
20 |
30 |
71.5 |
260 |
130 |
M18 |
60 |
255 |
189 |
25 |
10.3 |
|
TC30A |
3000 |
75-200 |
128-171 |
50 |
22 |
30.5 |
95.5 |
310 |
150 |
M24 |
80 |
220 |
155 |
25 |
17.5 |
|
TC30B |
3000 |
200-320 |
150-212 |
50 |
22 |
30.5 |
95.5 |
310 |
150 |
M24 |
80 |
280 |
215 |
25 |
19.5 |
