Plain Trolley and Geared Trolley
Product Model :
|
Plain Trolley and Geared Trolley LPT series

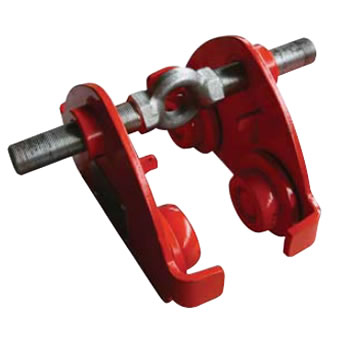

Plain Trolley
* Low headroom.
* Fine adjustment with threaded load crossbar.
* With anti-tilt.
* Manufactured according to prEN 13157:2000, machinery directive 98/37/EC.
|

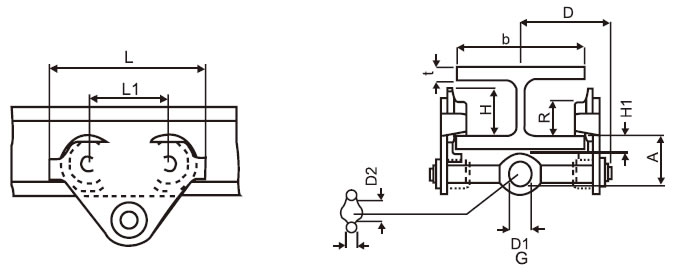

Model |
Capacity |
Size |
I-Beam Width |
Beam Thickness(mm) |
Net Weight |
|||||||||
|
(kg) |
t(mm) |
A |
G |
D1 |
D2 |
H |
H1 |
L |
L1 |
R |
D |
(kg) |
||
|
LPT05-A |
500 |
A |
50-203 |
77 |
16 |
25 |
30 |
71.5 |
30.5 |
260 |
130 |
60 |
146 |
8 |
|
LPT05-B |
500 |
B |
160-300 |
92 |
16 |
25 |
30 |
71.5 |
45.5 |
260 |
130 |
60 |
187 |
10.6 |
|
LPT10-A |
1000 |
A |
50-203 |
82.5 |
17 |
30 |
35 |
71.5 |
30.5 |
260 |
130 |
60 |
150 |
9 |
|
LPT10-B |
1000 |
B |
160-300 |
97.5 |
17 |
30 |
35 |
71.5 |
45.5 |
260 |
130 |
60 |
187 |
12 |
|
LPT20-A |
2000 |
A |
66-203 |
98.5 |
22 |
40 |
47 |
95.5 |
30.5 |
310 |
150 |
80 |
155 |
16 |
|
LPT20-B |
2000 |
B |
160-300 |
113.5 |
22 |
40 |
47 |
95.5 |
45.5 |
310 |
150 |
80 |
190 |
19.3 |
|
LPT30-A |
3000 |
A |
74-200 |
114 |
26 |
48 |
58 |
131 |
30 |
390 |
180 |
112 |
160 |
32 |
|
LPT30-B |
3000 |
B |
160-300 |
129 |
26 |
48 |
58 |
131 |
45 |
390 |
180 |
112 |
192 |
35.8 |
|
LPT50-A |
5000 |
A |
90-203 |
132.5 |
33 |
60 |
70 |
142.5 |
30 |
450 |
209 |
125 |
168 |
48 |
|
LPT50-B |
5000 |
B |
180-300 |
147.5 |
33 |
60 |
70 |
142.5 |
45 |
450 |
209 |
125 |
192 |
52.5 |
