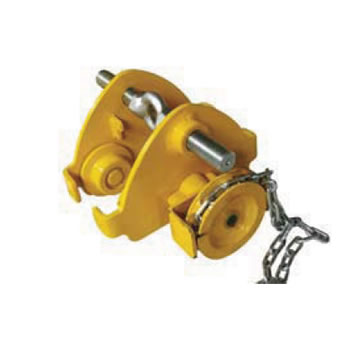

Geared Trolley
Product Model :
|
Geared Trolley LGT series
* Low headroom.
* Fine adjustment with threaded load crossbar.
* With anti-tilt.
* Manufactured according to prEN 13157:2000, machinery directive 98/37/EC.
|

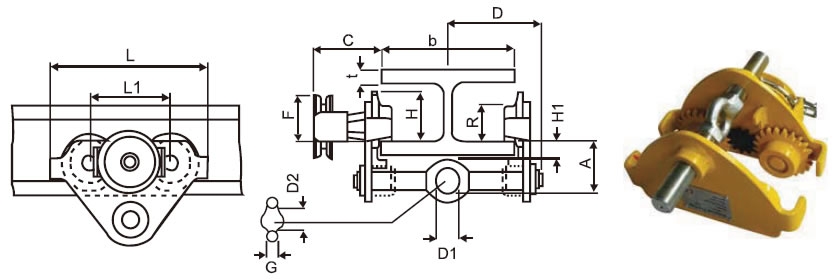

Model |
Capacity |
Size |
I-Beam Width |
Beam Thickness(mm) |
Net Weight |
|||||||||||
|
(kg) |
t(mm) |
A |
C |
G |
D1 |
D2 |
F |
H |
H1 |
L |
L1 |
R |
D |
(kg) |
||
|
LGT05-A |
500 |
A |
50-203 |
77 |
110 |
16 |
25 |
30 |
91.5 |
76.5 |
30.5 |
260 |
130 |
60 |
146 |
9.7 |
|
LGT05-B |
500 |
B |
160-300 |
92 |
110 |
16 |
25 |
30 |
91.5 |
76.5 |
45.5 |
260 |
130 |
60 |
187 |
12.6 |
|
LGT10-A |
1000 |
A |
50-203 |
82.5 |
110 |
17 |
30 |
35 |
91.5 |
76.5 |
30.5 |
260 |
130 |
60 |
150 |
11.2 |
|
LGT10-B |
1000 |
B |
160-300 |
97.5 |
110 |
17 |
30 |
35 |
91.5 |
76.5 |
45.5 |
260 |
130 |
60 |
187 |
14.1 |
|
LGT20-A |
2000 |
A |
66-203 |
98.5 |
110 |
22 |
40 |
47 |
90.5 |
98 |
30.5 |
310 |
150 |
80 |
155 |
18 |
|
LGT20-B |
2000 |
B |
160-300 |
114 |
110 |
22 |
40 |
47 |
90.5 |
98 |
45.5 |
310 |
150 |
80 |
190 |
21.3 |
|
LGT30-A |
3000 |
A |
74-200 |
114 |
110 |
26 |
48 |
58 |
108 |
133 |
30 |
390 |
180 |
112 |
160 |
35.4 |
|
LGT30-B |
3000 |
B |
160-300 |
129 |
110 |
26 |
48 |
58 |
108 |
133 |
45 |
390 |
180 |
112 |
192 |
39.2 |
|
LGT50-A |
5000 |
A |
90-203 |
133 |
110 |
33 |
60 |
70 |
150 |
149 |
30 |
450 |
209 |
125 |
168 |
51.8 |
|
LGT50-B |
5000 |
B |
180-300 |
148 |
110 |
33 |
60 |
70 |
150 |
149 |
45 |
450 |
209 |
125 |
192 |
56 |
