Plain Trolley and Geared Trolley
Product Model :
|
Plain Trolley and Geared Trolley PT series

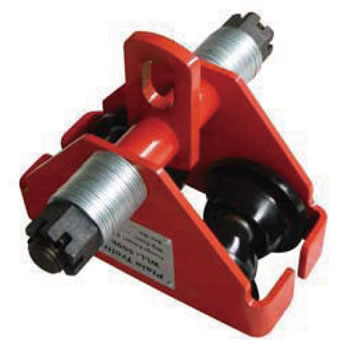

Plain Trolley
* Universal tread flanged track wheels equipped with shielded ball bearings.
* Spacer washers can be shifted inside or outside for easy adjustment to wide range of beams.
* Manufactured according to prEN 13157:2003, machinery directive 98/37/EC.
|
Model |
Capacity |
Min. Radus of Curve |
I-beam Recommended(mm) |

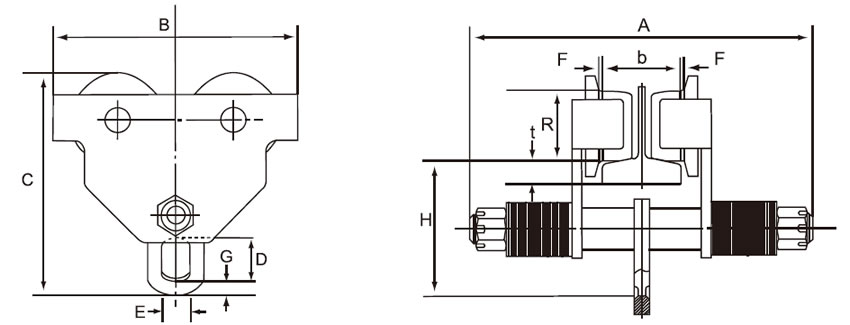

Dimensions |
Net Weight |
|||||||||||
|
b |
t min |
(mm) |
||||||||||||||
|
(kg) |
(m) |
Size A |
Size B |
Size A |
Size B |
A |
B |
C |
D |
E |
G |
H |
R |
F |
(kg) |
|
|
PT05 |
500 |
0.9 |
64-152 |
64-300 |
25 |
40 |
242 |
212 |
200 |
36 |
24 |
15 |
110 |
60 |
3 |
7 |
|
PT10 |
1000 |
1.0 |
64-203 |
64-300 |
25 |
40 |
266 |
255 |
230 |
48 |
30.5 |
15 |
125 |
75 |
14 |
|
|
PT20 |
2000 |
1.1 |
88-203 |
88-300 |
25 |
40 |
306 |
302 |
275 |
58 |
36 |
20 |
151 |
89 |
22 |
|
|
PT30 |
3000 |
1.3 |
102-203 |
102-300 |
25 |
40 |
360 |
345 |
339 |
74.5 |
45 |
25 |
185 |
112 |
30 |
|
|
PT50 |
5000 |
1.4 |
114-203 |
114-300 |
25 |
40 |
372 |
378 |
393 |
97 |
60 |
34 |
220 |
125 |
55 |
|
|
PT100 |
10000 |
1.7 |
125-203 |
125-300 |
40 |
40 |
403 |
445 |
500 |
114 |
80 |
52 |
280 |
150 |
93 |
|
