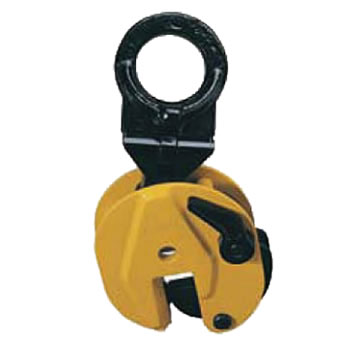

Universal Plate Clamp
Product Model :
|
Universal Plate Clamp UPC series
* Design for lifting and transporting steel plate and construction vertical.
* The pivoting shackle ensures adequate gripping pressure to hold the plate safely in every position.
* Hardened steel jaws for positive grip and locking mechanism.
* The user can place and lift the load from any direction because of the hinged hoisting eye moving in all directions.
* Conforms to CE safety standard.
|
Model |
Capacity |
Test Load |
Jaw Opening Size |

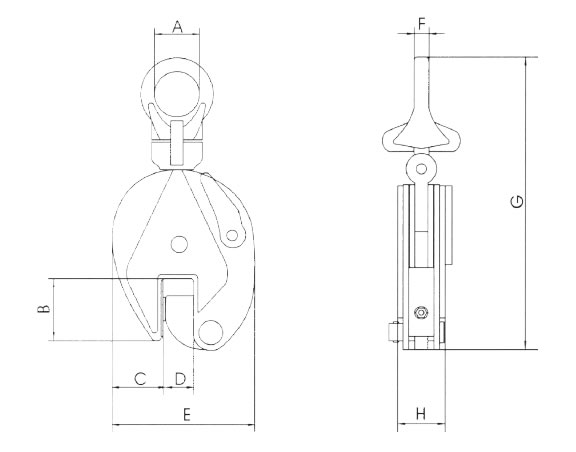

Dimensions (mm) |
Net Weight |
|||||||
|
|
(kg) |
(KN) |
(mm) |
A |
B |
C |
D |
E |
F |
G |
H |
(kg) |
|
UPC05 |
500 |
7.35 |
0-15 |
30 |
44 |
34.5 |
0-17 |
103 |
10 |
212 |
36 |
2 |
|
UPC10 |
1000 |
14.7 |
0-20 |
48 |
63 |
51 |
0-22 |
138 |
12 |
294 |
50 |
4.8 |
|
UPC20 |
2000 |
29.4 |
0-25 |
68 |
76 |
59 |
0-27 |
164 |
16 |
370 |
52 |
6.5 |
|
UPC30 |
3000 |
44.1 |
0-30 |
74 |
85 |
56 |
0-32 |
193 |
20 |
418 |
78 |
15 |
|
UPC50 |
5000 |
73.5 |
0-50 |
80 |
90 |
65 |
0-52 |
240 |
22 |
450 |
88 |
23 |
