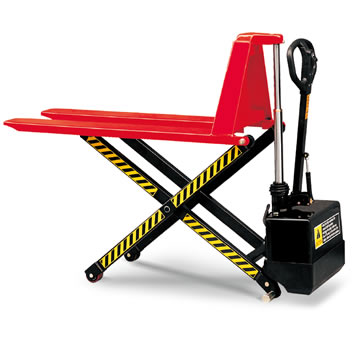

Electric High Lift Scissor Truck
Product Model :
|
Electric High Lift Scissor Truck JE series
World class performance
* Character: These electric high lift pallet trucks have further advantages when working with heavy items and constant daily use. They are ideal as combined hand pallet truck and lift table.
* Adjustable stabilizers extended to the floor automatically when the forks reach a height of 420mm, to ensure maximum stability and optimum braking.
* Ergonomic warm handle offers you simple and comfortable operation.
* Top quality power unit made in Europe.
* Conforms to EN1757-4 and EN1175.
|
Model |
|
JE5210 |
JE6810 |
JE5215 |
JE6815 |
|
Capacity |
(kg) |
1000 |
1000 |
1500 |
1500 |
|
Max. Fork Height |
(mm) |
800 |
800 |
800 |
800 |
|
Min. Fork Height |
(mm) |
85 |
85 |
85 |
85 |
|
Fork Overall Width |
(mm) |
520 |
680 |
520 |
680 |
|
Fork Length |
(mm) |
1140 |
1140 |
1100 |
1100 |
|

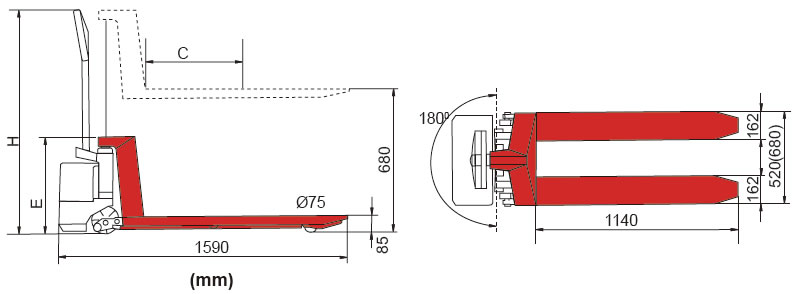

Dimension |
C (mm) |
600 |
600 |
600 |
600 |
|
E (mm) |
530 |
530 |
530 |
530 |
|
|
H (mm) |
1250 |
1250 |
1250 |
1250 |
|
|
Battery |
(Ah/V) |
70/12 |
70/12 |
70/12 |
70/12 |
|
Battery Charger |
(A/V) |
10/12 |
10/12 |
10/12 |
10/12 |
|
Net Weight |
(kg) |
140 |
147 |
149 |
157 |
