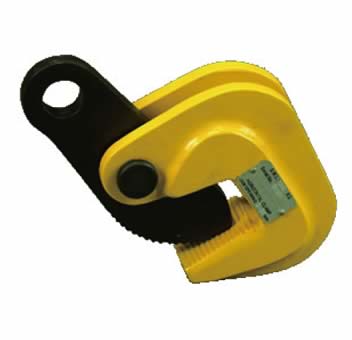

Horizontal Plate Clamp
Product Model :
|
Horizontal Plate Clamp PLL series
* Suitable for lifting and transport of steel plates construction and profiled bar in horizontal position.
* Manufactured from high quality carbon steel.
* Avoid snatch or shock loading.

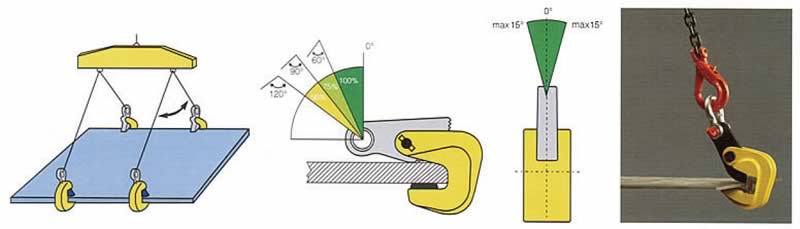

*The working load limit is the maximum load that the clamp are authorized to support when used in pairs with a lift angle of 60°.
In lifting operations the clamps can be used in pairs or multiples.
|
Model |
WLL |
Jaw Opening |
Weight |
|
PLL1 |
1.0 |
0-30 |
4 |
|
PLL2 |
2.0 |
0-50 |
5.5 |
|
PLL3.2 |
3.2 |
0-60 |
8 |
|
PLL5 |
5.0 |
10-80 |
11.5 |
|
PLL6 |
6.0 |
10-100 |
14.5 |
|
PLL10 |
10.0 |
20-120 |
30 |
