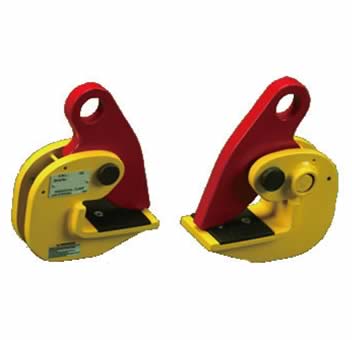

Horizontal Plate Clamp
Product Model :
|
Horizontal Plate Clamp PLM series
* Suitable for lifting and transport of steel plates construction and profiled bar in horizontal position.
* Manufactured from hith quality carbon steel.
* Avoid snatch or shock loading.

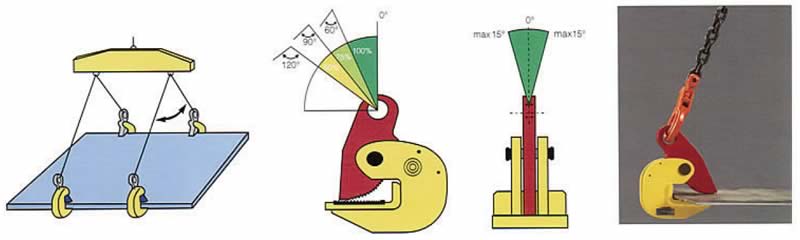

* The working load limit is the maximum load that the clamp are authorized to support when used in pairs with a lift angle of 60°.
In lifting operations the clamps can be used in pairs or multiples.
* The screw jaw of the body can be changed, also have a safety button.
.jpg)
|
Model |
WLL |
Jaw Opening |
Weight |
|
PLM0.8 |
0.8 |
0-25 |
2.5 |
|
PLM1 |
1.0 |
0-30 |
3.5 |
|
PLM1.6 |
1.6 |
0-30 |
4 |
|
PLM2 |
2.0 |
0-40 |
5 |
|
PLM3.2 |
3.2 |
0-45 |
6 |
|
PLM4 |
4.0 |
0-50 |
6.5 |
|
PLM5 |
5.0 |
0-55 |
7.5 |
|
PLM6 |
6.0 |
0-65 |
10.5 |
|
PLM6(B) |
6.0 |
0-130 |
22 |
|
PLM8 |
8.0 |
0-100 |
22 |
|
PLM10 |
10.0 |
0-125 |
33 |
