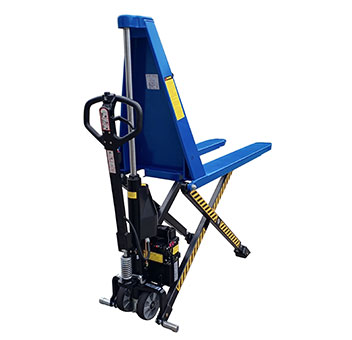

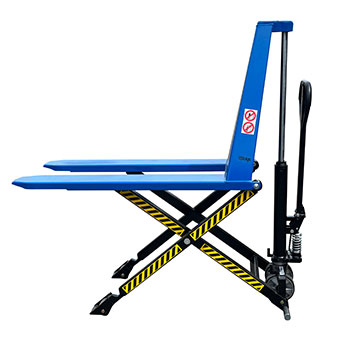

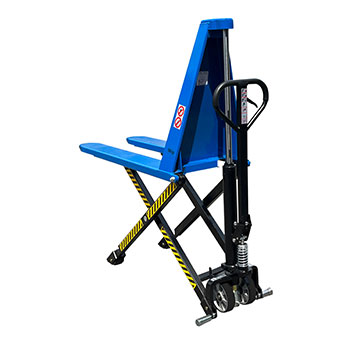

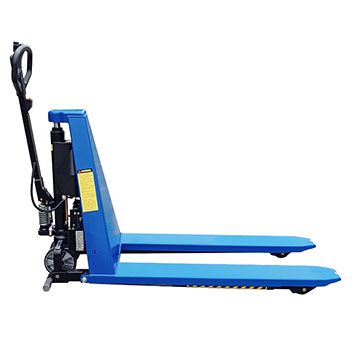

High Lift Scissor Truck
Product Model :
|
High Lift Scissor Truck HB series
* World class quality and performance.
* Single stage cylinder.
No decrease of capacity.
No risk of leakage.
No dangerous dropping of second stage cylinder.
* Ergonomic design handle.
Simple and comfortable operation.
* Improved safety.
Automatic activation of self-adjusting stabilizers when lifting loads higher than
400mm for maximum stability and optimum braking.

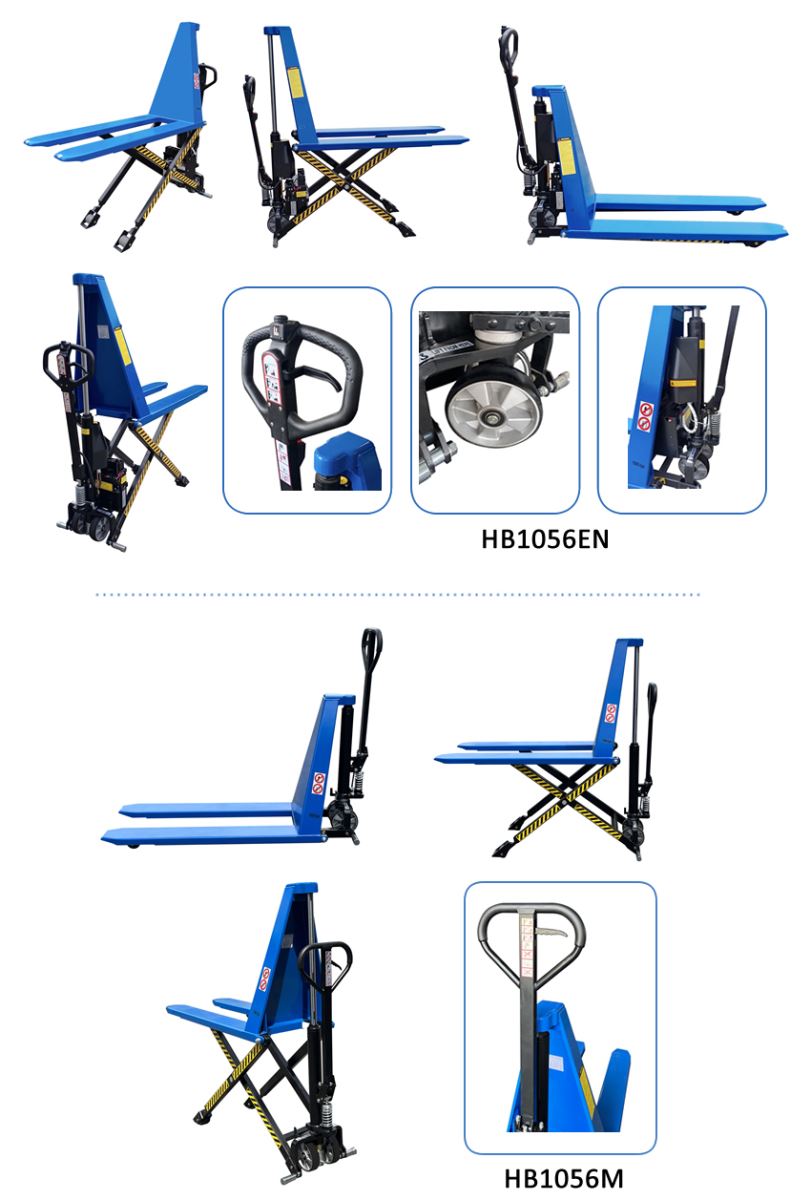

* HB1056M/1068M-Manual.
Quick-lift function doubles the lifting speed when lifting loads less than 250kg.
* HB1056E/EN, HB1068E/EN-EIectric.
* Easy handling
The compact structure with the battery and power unit positioned between body
and lifting cylinder resulting in a low centre of gravity and excellent maneuverability.
* Flexibility
Can work manually when the battery has been charged.
* Charger
10A/12V separate, or 6A/12V Built-in.
* Reliable
HPI power unit made in France.
* Conforms to EN1757-4 and EN1175.
|
Model |
|
HB1056M |
HB1068M |
HB1056E |
HB1068E |
HB1056EN |
HB1068EN |
|
Type |
|
Manual |
Electric |
Electric (built in charger) |
|||
|
Capacity |
(kg) |
1000 |
1000 |
1000 |
1000 |
1000 |
1000 |
|
Max. Fork Height |
H (mm) |
800 |
800 |
800 |
800 |
800 |
800 |
|
Min. Fork Height |
h (mm) |
85 ± 2 |
85 ± 2 |
85 ± 2 |
85 ± 2 |
85 ± 2 |
85 ± 2 |
|
Fork Width |
B (mm) |
560 |
680 |
560 |
680 |
560 |
680 |
|
Fork Length |
L (mm) |
1190 |
1190 |
1190 |
1190 |
1190 |
1190 |
|
Ground Clearance |
s (mm) |
20 |
20 |
20 |
20 |
20 |
20 |
|
Front Load Roller |
(mm) |
Ø75x75 |
Ø75x75 |
Ø75x75 |
Ø75x75 |
Ø75x75 |
Ø75x75 |
|
Steering Wheel |
(mm) |
Ø180x50 |
Ø180x50 |
Ø180x50 |
Ø180x50 |
Ø180x50 |
Ø180x50 |
|
Pump Strokes to Max. Height |
|
28/62 |
28/62 |
— |
— |
— |
— |
|
Lifting Time, without / with Rated Load |
(sec) |
— |
— |
11/19 |
11/19 |
11/19 |
11/19 |
|
Battery |
(Ah/V) |
— |
— |
70/12 |
70/12 |
70/12 |
70/12 |
|
Battery Charger |
|
— |
— |
Separate 10A/12V |
Built-in 6A/12V |
||
|
Net Weight (without Battery) |
(kg) |
128 |
133 |
158 |
163 |
159 |
164 |
