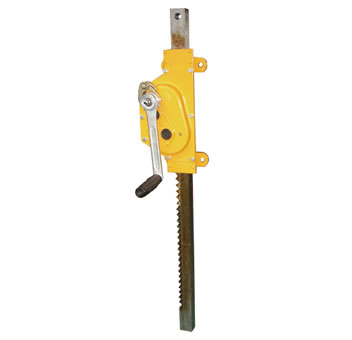

Hang Steel Jack
Product Model :
|
Hang Steel Jack MJW series
For all professional applications!
* Capacity from 1500kg to 16000kg.
* Heavy duty structure, high stability and long life.
* According to safety regulations, every vehicle must be supported by stands.
|
Model |
MJW1.5 |
MJW3 |
MJW5 |
MJW10 |
|
|
Rated lifting capacity |
(kg) |
1500 |
3000 |
5000 |
10000 |
|
Lifting height |
(mm) |
≥800 |
≥565 |
≥700 |
≥700 |
|
Load on the operating handle |
(N) |
≤280 |
≤280 |
≤280 |
≤400 |
|
N.W. |
(kg) |
13 |
21 |
29 |
50 |
|
Packing size |
(cm) |
18×18×113 |
19×24×101 |
21×24×121 |
25×30×128 |
|

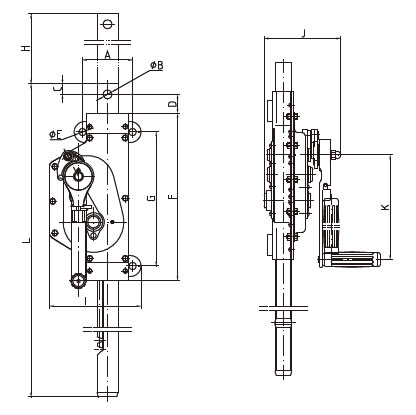

A |
(mm) |
100 |
120 |
120 |
140 |
|
B |
(mm) |
21 |
21 |
21 |
30 |
|
C |
(mm) |
20 |
25 |
25 |
30 |
|
D |
(mm) |
20 |
25 |
45 |
30 |
|
E |
(mm) |
12.5 |
14.5 |
17 |
21 |
|
F |
(mm) |
310 |
395 |
410 |
480 |
|
G |
(mm) |
260 |
305 |
320 |
410 |
|
I |
(mm) |
151 |
212 |
219 |
274 |
|
J |
(mm) |
156 |
164 |
188 |
220 |
|
K |
(mm) |
250 |
250 |
250 |
300 |
