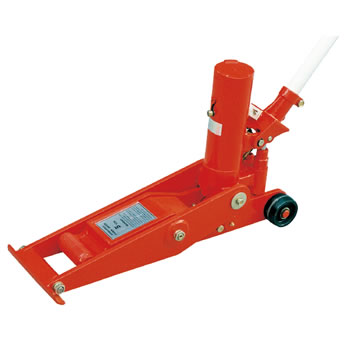

Forklift Jack
Product Model :
|
Forklift Jack HFJ-500
* Uniquely built in two lifting speeds.
Quick lifting and slow lifting which can be automatically switched between with load and without load.
Quick lifting: 20 times pump strokes.
Slow lifting: 60 times pump strokes.
* Two alternative lifting positions.
Low position: capacity 4000kg.
High position: capacity 5000kg.
* Built in overload valve and bypass valve.
Guarantees safety and reliable operation.
* Low profile lifting: 65mm.
|
Model |
HFJ-500 |
||
|
Lifting Position |
(T) |
Low position |
High position |
|
Lifting Capacity |
4 |
5 |
|
|
Min. Lifting Height |
(mm) |
425 |
724 |
|
Max. Lifting Height |
(mm) |
65 |
416 |
|
Pump Stroke to Max. Height |
(mm) |
60 |
60 |
|
Overall Dimensions |
LxWxH (mm) |
690x210x1190 |
690x210x1190 |
|
Net Weight |
(kg) |
45 |
45 |
