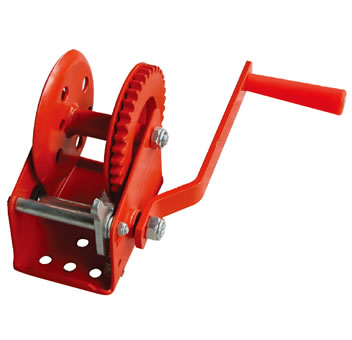

Hand Winch Hand Brake
Product Model :
|
Hand Winch Hand Brake HHW series
* Suitable for many lifting and lowering applications
* Hand winch can be supplied with belt or steel cable to special order
* Painting or zinc plating is optional
|
Model |
Capacity |
Test Load |
Gear Ratio |

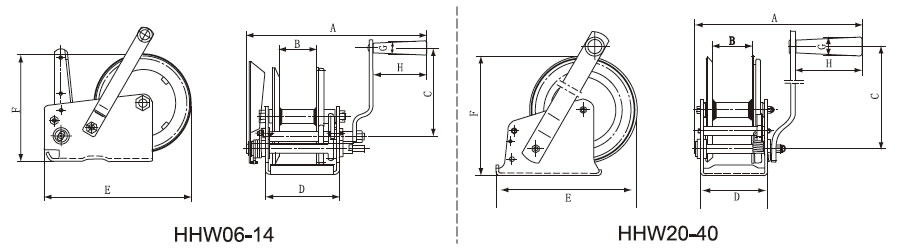

Dimension (mm) |
Net Weight |
No.of Speed |
||||||||
|
(kg) |
(ibs) |
(KN) |
A |
B |
C |
D |
E |
F |
G |
H |
||||
|
HHW06 |
273 |
600 |
4 |
2.9:1 |
232 |
51 |
180 |
88 |
165 |
138 |
25 |
90 |
2.5 |
Single |
|
HHW08 |
365 |
800 |
5.34 |
3.7:1 |
232 |
51 |
180 |
88 |
165 |
138 |
25 |
90 |
2.6 |
Single |
|
HHW10 |
454 |
1000 |
6.67 |
4.2:1 |
232 |
51 |
180 |
88 |
184 |
156 |
25 |
90 |
2.8 |
Single |
|
HHW12 |
545 |
1200 |
8 |
4.2:1 |
232 |
51 |
180 |
88 |
184 |
156 |
25 |
90 |
2.8 |
Single |
|
HHW14 |
635 |
1400 |
9.34 |
4.2:1 |
232 |
51 |
180 |
88 |
184 |
156 |
25 |
90 |
2.8 |
Single |
|
HHW20 |
908 |
2000 |
13.35 |
10.35:1/4.5:1 |
310 |
65 |
250 |
130 |
243 |
178 |
25 |
90 |
6.2 |
Double |
|
HHW40 |
1135 |
2500 |
16.68 |
11.5:1/5.1:1 |
310 |
65 |
250 |
130 |
257 |
190 |
25 |
90 |
6.5 |
Double |
