Hand Winch
Product Model :
|

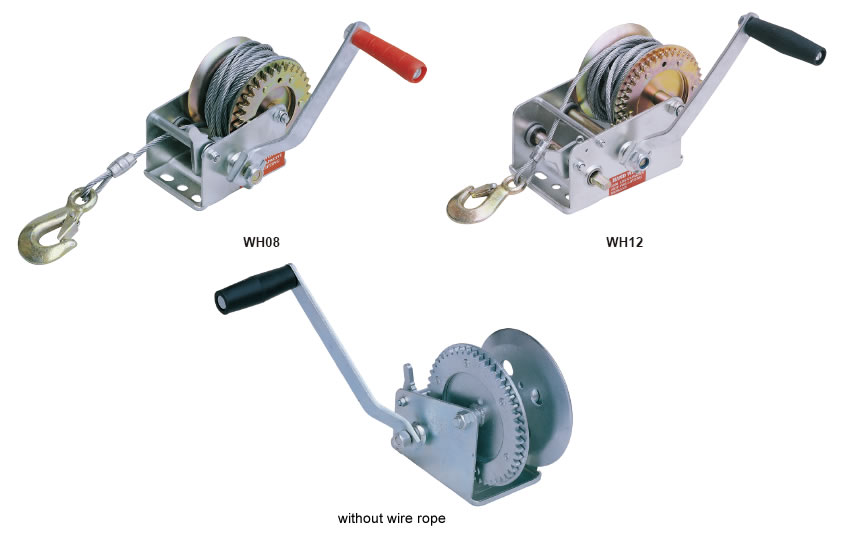

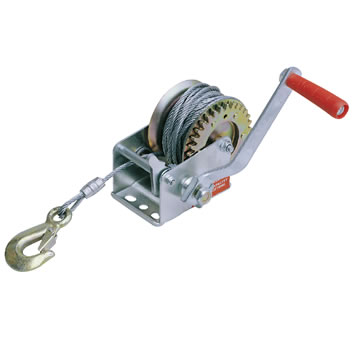

Hand Winch WH series
* Suitable for many lifting and lowering applications such as raising boats on davits or raising and lowering saiboat keels.
* Self-locking brake winches provide additional safety and control for many lifting and pulling jobs.
* The automatic friction brake supplies constant,positive holding action and prevents runaway
Load.
* Brake is fully automatic and the load remains in position anytime the handle is released.
|
Model |
W.L.L (ibs) | Cable | Gear Ratio | Net Weight (kg) |
|
WH06 |
600 | 4.2mm x 10m | 3:1 | 17 |
|
WH08 |
800 | 4.5mm x 10m | 3:1 | 17 |
|
WH10 |
1000 | 4.5m x 10m | 3.4:1 | 19 |
|
WH12 |
1200 | 4.8mm x 10m | 3.4:1 | 19 |
|
WH14 |
1400 | 4.8mm x 10m | 3.4:1 | 22 |
|
WH16 |
1600 | 5.0mm x 10m | 4:1 | 17 |
|
WH18 |
1800 | 5.1mm x 10m | 4:1/8:1 | 20 |
|
WH20 |
2000 | 5.1mm x 10m | 4:1/8:1 | 21 |
|
WH25 |
2500 | 5.6mm x 10m | 4:1/8:1 | 23 |
