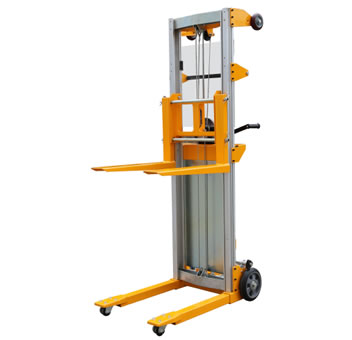

Aluminum Stacker
Product Model :
|

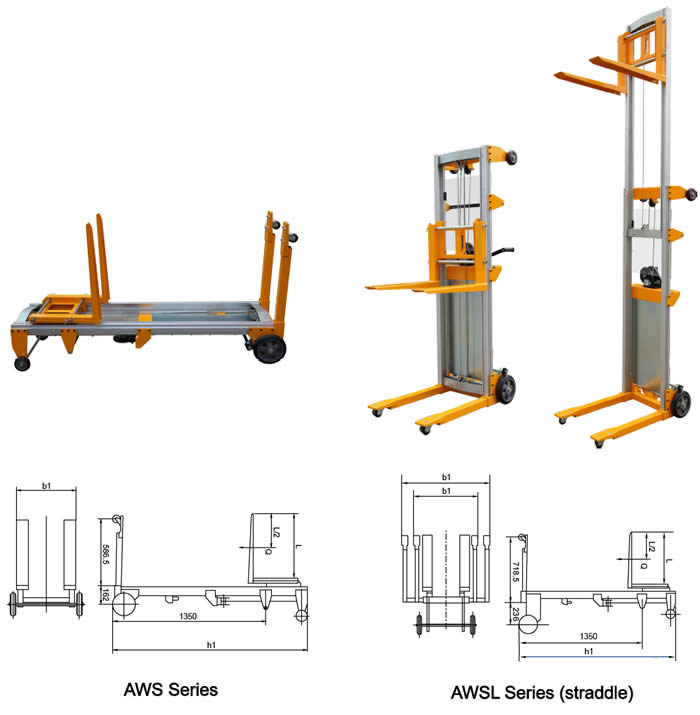

Aluminum Stacker AWS/AWSL Series
* Disassembling and assembling is easy.
* Can fit into smaller spaces when disassembled.
* Equipped with wheels on the mast also allow it to be used as a trolley.
* Light Alumium mast, easy for handling.
* No any hydraulic problem, beasue it is operated by winch.
* The brake function with special design is obvious.
* Conforms to EN1757-1.
|
Model |
|
AWS181 |
AWSL181 |
AWS227 |
AWSL227 |
|
Capacity |
Q(kg) |
181 |
181 |
227 |
227 |
|
Load Centre |
C(mm) |
305 |
305 |
305 |
305 |
|
Height-maximum Forks Down |
h1(mm) |
2500 |
2500 |
1250 |
1250 |
|
Min. Fork Height |
(mm) |
90 |
50 |
90 |
50 |
|
Fork Length |
L(mm) |
570 |
570 |
570 |
570 |
|
Fork Width |
b1(mm) |
630 |
1100 |
630 |
1100 |
|
Net Weight |
(kg) |
60 |
66 |
51 |
57 |
