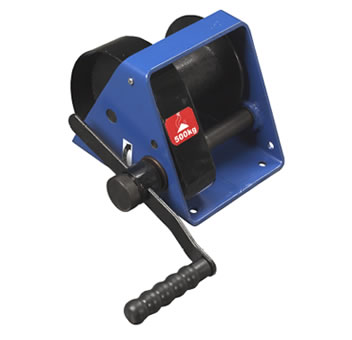

Endless Screw Winch and Geared Winch
Product Model :
|

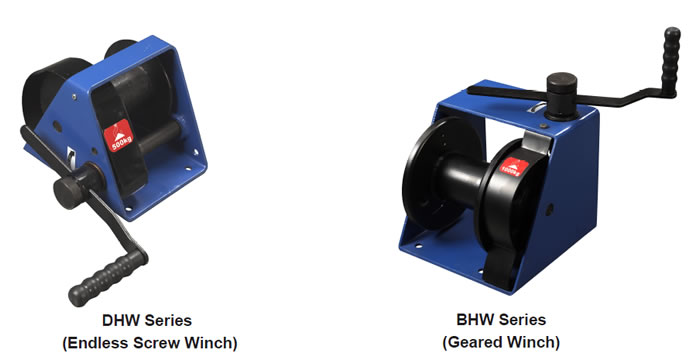

Endless Screw Winch and Geared Winch BHW&DHW series
* Encased mechanical parts
* Automatic brake
* Adjustable and dismountable crank
* 2 securing planes horizontal of vertical (according to model)
* Can be unclutched when off-load, whilst impossible to unclutch under load
|
Model |
DHW150 |
DHW300 |
DHW500 |
DHW1000 |
DHW2000 |
BHW250 |
BHW500 |
BHW1000 |
|
|
Capacity |
(kg) |
150 |
300 |
500 |
1000 |
2000 |
250 |
500 |
1000 |
|
For wire rope |
(mm) |
4 |
5 |
6.8 |
9 |
13 |
5 |
6.8 |
9 |
|
Length |
(m) |
22 |
40 |
25 |
25 |
30 |
20 |
25 |
35 |
|
Number of layers |
6 |
6 |
4 |
4 |
3 |
4 |
4 |
4 |
|
|
N.W. |
(kg) |
8 |
16 |
17 |
38 |
60 |
10 |
16 |
40 |
