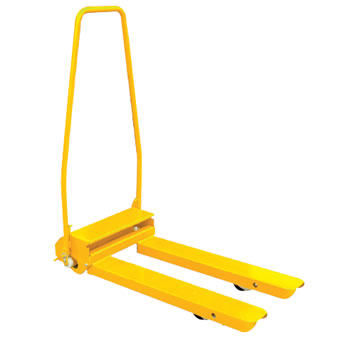

Mechanic Lifter MX series
Product Model :
|
Mechanic Lifter MX series
* To replace hydraulic pallet truck when under 300kg load.
Pallets are simply lifted by pulling the handle backwards (the leverage principle).
Saves a lot of time as no pumping is required.
* Extremely low weight, about 25kg.
Thanks to the low weight, the mechanic lifter can easily be carried to other floors, put into a truck or a car.

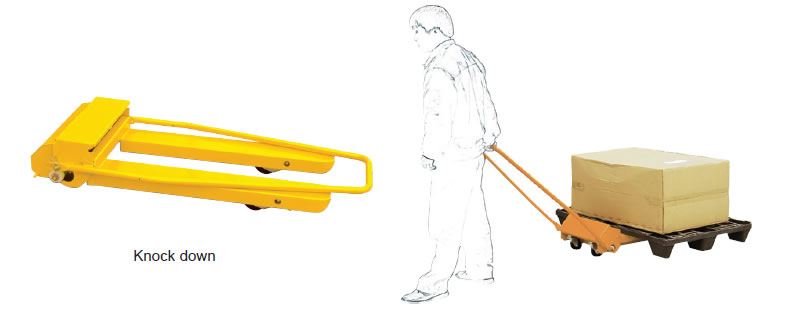

* Foldable. When not in use, it can be hung up on a hook on the wall.
* No Hydraulic pump to repair, no oil can leak out no seals to replace.
* Ideal for grocery stores, all kind of small stores pharmaceutical industry ,drugstores, offices, schools, hospitals etc.
Model |
|
MX0608 |
MX0610 |
Capacity |
(kg) |
300 |
300 |
Lift Height |
(mm) |
145 |
145 |
Lowered Height |
(mm) |
85 |
85 |
Fork Width Outside |
(mm) |
420 |
420 |
Fork Length |
(mm) |
800 |
1100 |
Width of Single Fork |
(mm) |
120 |
120 |
Total Height |
(mm) |
200/1160 |
200/1160 |
Steer Wheel |
Dia.xWidth (mm) |
Ø80x40 |
Ø80x40 |
Load Wheel |
Dia.xWidth (mm) |
Ø80x40 |
Ø80x40 |
Overall Size |
LxW (mm) |
1030x420 |
1330x420 |
Net Weight |
(kg) |
25 |
30 |
