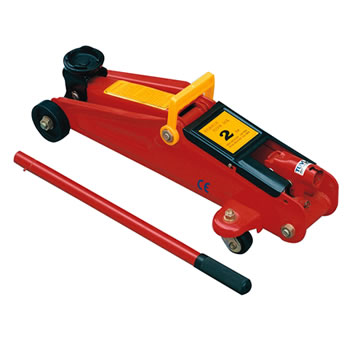

Floor Jack HF series
Product Model :
|
Floor Jack HF series
* Features a one-piece lift arm with dual leveling mechanism and reinforced flanged side frames for added strength under load.
* Patented safety bypass system prevents overextension and accidental overloading.
* Double swivel saddle and heavy steel casters allow safe, easy positioning.
|

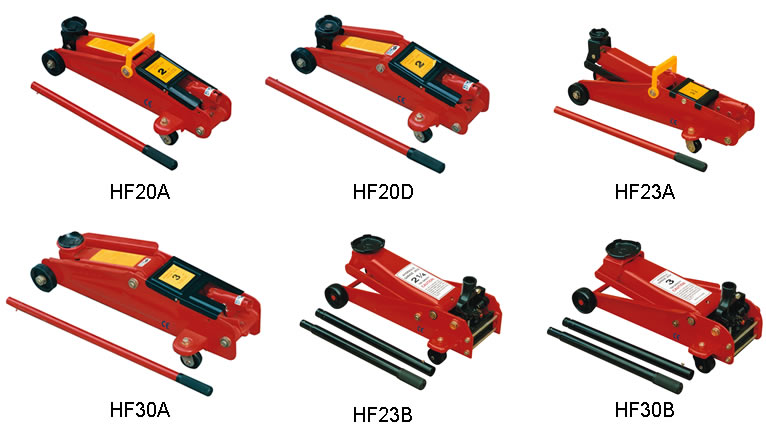

Model |
Capacity |
Min./Max. Height |
Overall Size |
Packing Size |
Net Weight |
Safety Std. |
Application |
|
HF20A |
2000 |
135/385 |
550×212×140 |
555×235×155 |
12 |
CE / GS |
Light duty |
|
HF20D |
2000 |
135/342 |
471×199×135 |
480×210×145 |
9.5 |
CE / GS |
|
|
HF23A |
2250 |
135/385 |
550×212×140 |
555×235×155 |
13 |
ANSI / ASME |
|
|
HF30A |
3000 |
135/395 |
628×252×168 |
640×267×179 |
19 |
CE / GS |
|
|
HF23B |
2250 |
135/490 |
692×346×176 |
735×386×181 |
34 |
CE / GS |
Heavy duty |
|
HF30B |
3000 |
135/490 |
660×346×180 |
738×385×203 |
36 |
CE / GS |
