Two-steps Hydrauilc Jacks
Product Model :
|

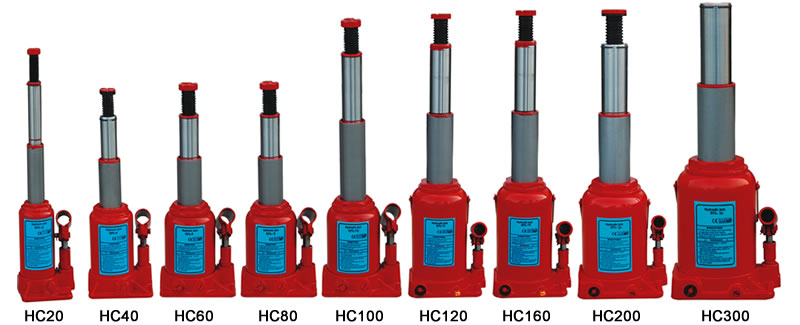

Two-steps Hydrauilc Jacks HC series
* Provide a high lift with a minimum collapsed height.
* Can be used vertically (not upside down) or at any angle to not more than 5 degree from vertical position.
ave low operating force and large range capacity.
* Conforms to ASME/ANSI-PALD standards.
|
Model |
Capacity |
Min. Height |
First lifting |
Second Lifting |
Adjust Height |
Packing Size |
Net Weight |
|
HC20 |
2 |
165 |
98 |
92 |
55 |
60×21×20 |
2.9 |
|
HC40 |
4 |
150 |
80 |
80 |
35 |
61×14×22 |
4.5 |
|
HC60 |
6 |
154 |
80 |
80 |
40 |
47×16×21 |
5.5 |
|
HC80 |
8 |
156 |
80 |
80 |
40 |
47×16×21 |
6.5 |
|
HC100 |
10 |
225 |
140 |
145 |
50 |
38×19.5×26 |
8.5 |
|
HC120 |
12 |
230 |
140 |
145 |
50 |
38×19.5×26 |
10.5 |
|
HC160 |
16 |
232 |
140 |
145 |
50 |
38×19.5×26 |
13 |
|
HC200 |
20 |
235 |
140 |
145 |
50 |
20.5×20×26 |
16.5 |
|
HC300 |
30 |
250 |
140 |
140 |
-- |
24×22×27 |
25 |
