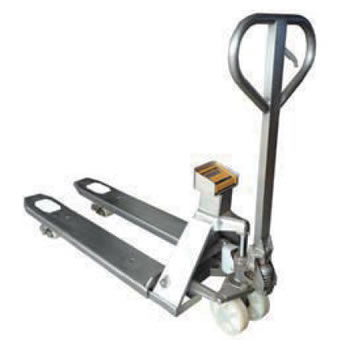

Stainless Pallet Truck with Scale
Product Model :
  • ZFS20S
  • ZFS20L
  • ZFPS20S
  • ZFPS20L

Stainless Pallet Truck with Scale   ZFS/ZFPS series

* All parts are made of stainless including hydraulic pump, handle, push rod etc., especially, chassis are made by stainless Grade 316.
* Accuracy 0.1% of the weight applied to the scale.
* Graduation 1kg.
* More reliability for the hardest applications and environments.
* Lower power consumption makes scale more user friendly. New batteries are only needed one time per year when weighing 10 pallets per day.
* 4 p.enlight batteries can be changed without any effort.
* Auto shut off prevents the batteries to be discharged when client forgets to turn the indicator off.
* Summation of weights with sequence number allows verification if the total load has weighted.
* According to RoSH directive and conforms to EN1752-2.

 Model

 ZFS20S

 ZFS20L

 ZFPS20S

 ZFPS20L

 Capacity

(kg)

 2000

 2000

 2000

 2000

 Printer



 without

 without

 with

 with

 Max. Fork Height

(mm)

 205

 205

 205

 205

 Min. Fork Height

(mm)

 85

 85

 85

 85

 Fork Length

(mm)

 1150

 1150

 1150

 1150

 Width Overall Forks

(mm)

 555

 690

 555

 690

 Fork Width

(mm)

 180

 180

 180

 180

 Net Weight

(kg)

 117

 120

 118

 121

3” (75mm) lowered fork height available.
