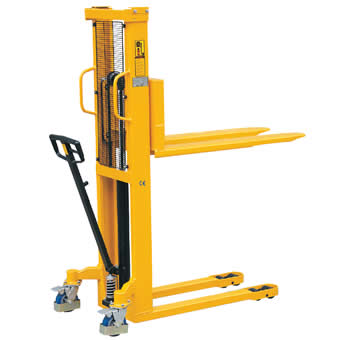

Hand Stacker MT / GT series
Product Model :
|
Hand Stacker MT / GT series
Heavy Duty Design
* Unique technology of quick lift system.
* Compact design and strong, accurate steel construction.
Top quality 1 piece “C” section forks for greatest strength.
* Heavy duty 1 piece “C” section forks for greatest strength.
* Top of stroke bypass valve built in.
* Conforms to EN1757-1:2001.
|

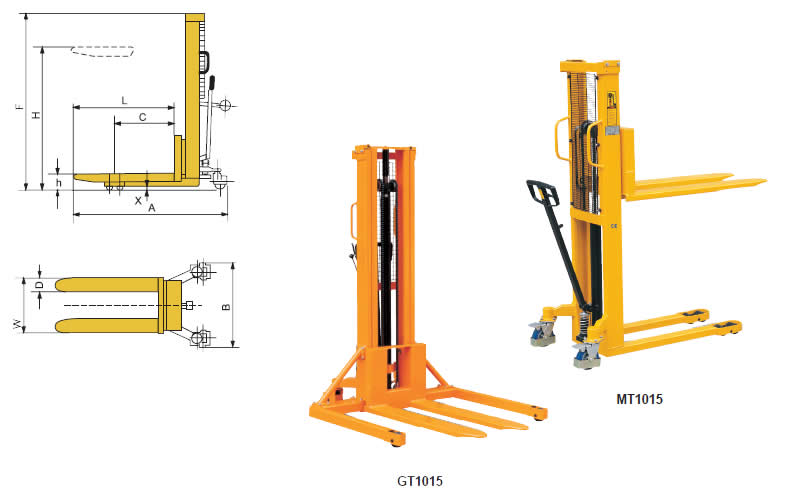

Model |
|
MT1015 |
MT1029 |
GT1015 |
GT1029 |
|
Type |
Standard |
Straddle Leg |
|||
|
Capacity |
(kg) |
1000 |
1000 |
1000 |
1000 |
|
Load Centre |
C (mm) |
550 |
550 |
550 |
550 |
|
Max. Fork Height |
H (mm) |
1500 |
2850 |
1500 |
2850 |
|
Min. Fork Height |
h (mm) |
90 |
90 |
65 |
65 |
|
Fork Length |
L (mm) |
1150 |
1150 |
1150 |
1150 |
|
Single Fork Width |
D (mm) |
160 |
160 |
160 |
160 |
|
Overall Fork Width |
W (mm) |
540 |
540 |
540 |
540 |
|
Leg Width(inside) |
W1(mm) |
--- |
--- |
1270 |
1270 |
|
Load Roller |
(mm) |
Φ78×80 |
Φ78×80 |
Φ78×80 |
Φ78×80 |
|
Steering Wheel |
(mm) |
Φ150×38 |
Φ150×38 |
Φ150×38 |
Φ150×38 |
|
Overall Length |
A (mm) |
1595 |
1595 |
1595 |
1595 |
|
Overall Width |
B (mm) |
680 |
680 |
1395 |
1395 |
|
Overall Height |
F (mm) |
1960 |
2000 |
1960 |
2000 |
|
Net Weight |
(kg) |
230 |
370 |
250 |
390 |
|
Note: Materials and specification are subject to change without notice. |
|||||
