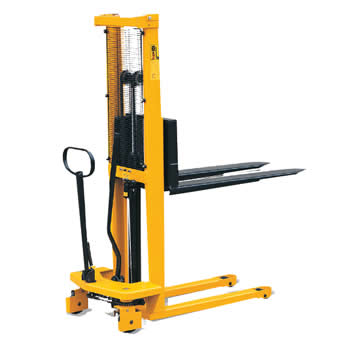

Hand Stacker KS series
Product Model :
|
Hand Stacker KS series
* Lifted by towbar and lowered by manual control.
* Double action hand pump provides quicker lifting.
* Mechanical switch for unloaded and loaded lift.
* Chain drive steering system offer a maximum Manoeuvrability with 180°turning angle.
* Conforms to EN1757-1.
|

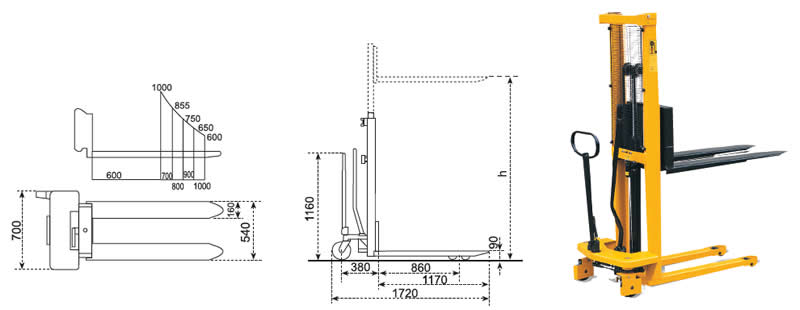

Model |
|
KS1015 |
KS1027 |
|
Capacity |
(kg) |
1000 |
1000 |
|
Lifting Height |
h (mm) |
1500 |
2750 |
|
Lifting per Stroke |
(mm) |
30 |
30 |
|
Min. Fork Height |
(mm) |
90 |
90 |
|
Fork Length |
(mm) |
1150 |
1150 |
|
Fork overall Width |
(mm) |
540 |
540 |
|
Load Wheel |
(mm) |
Φ78×80 nylon |
Φ78×80 nylon |
|
Steering Wheel |
(mm) |
Φ150×55 nylon |
Φ150×55 nylon |
|
Overall Size |
L×W×H (mm) |
1600×700×1950 |
1600×700×1700 |
|
Net Weight |
(kg) |
240 |
270 |
