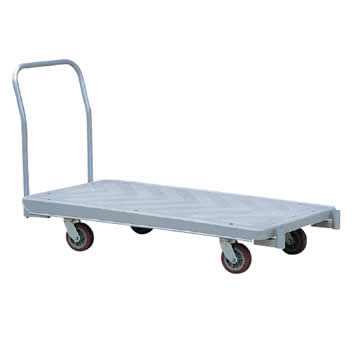

Plastic Platform Truck PM series
Product Model :
|
Plastic Platform Truck PM series
* Capacity 400kg, 1000kg, 1500kg for evenly distributed load.
* Less hassle than metal carts, will not rust, discolor or warp.
* Maintenance free and easy to clean.
* Honeycomb construction is reinforced for longer lift.
* Extra square steel tube underneath of platform to reinforce the truck.
* Heavy duty castor wheel: Φ150×40mm, polyurethane.
* 400kg and 1000kg capacity truck have two rigid wheels, two swivel wheels.
* 1500kg have two rigid wheels, four swivel wheels.
* Removable steel handle.

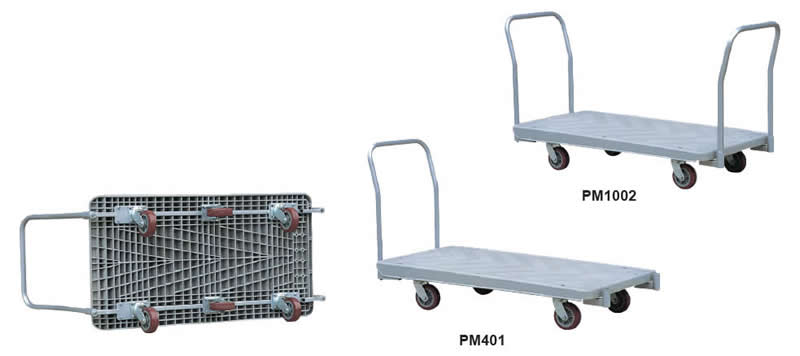

Model |
|
PM401 |
PM402 |
PM1001 |
PM1002 |
PM1501 |
PM1502 |
Capacity |
(kg) |
400 |
400 |
1000 |
1000 |
1500 |
1500 |
No.of Hand |
|
1 |
2 |
1 |
2 |
1 |
2 |
Platform Size |
L×H (mm) |
1510×750 |
1510×750 |
1510×750 |
1510×750 |
1510×750 |
1510×750 |
Platform Size |
L×W (mm) |
190 |
190 |
190 |
190 |
190 |
190 |
Handle Height |
(mm) |
965 |
965 |
965 |
965 |
965 |
965 |
Overall Dimensions |
(mm) |
1705×765×965 |
1780×765×965 |
1705×765×965 |
1780×765×965 |
1705×765×965 |
1780×765×965 |
Net Weight |
(kg) |
58 |
60 |
62 |
64 |
67 |
69 |
