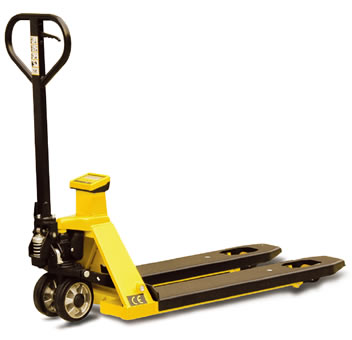

Mobile Weighing Cart
Product Model :
|

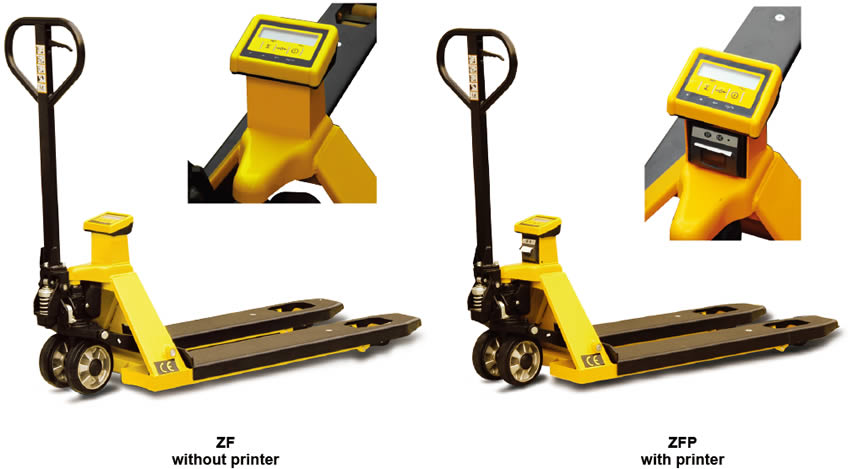

Mobile Weighing Cart ZF / ZFP series
* Small and compact electronics specially developed for mobile weighing.
Highest level of water and humidity resistance.
Smaller housing is more robust and withstands impacts and vibration better.
One electronic board without connectors means reliability for many years in the hardest applications.
Lower weight of the scale it self ;122kg,means easier handling of the scale.
* More reliability for the hardest applications and environments.
* Lower power consumption makes scale more user friendly. New batteries are only needed one time per year when eighing 10 pallets per day.
* 4 Penlight batteries can be changed without any effort.
* Auto shut off prevents the batteries to be discharged when client forgets to turn the indicator off.
* Summation of weights with sequence number allows verification if the total load has been weighed.
|
Model |
|
ZF20S |
ZF20L |
ZFP20S |
ZFP20L |
|
Capacity |
(kg) |
2000 |
2000 |
2000 |
2000 |
|
Printer |
|
without |
without |
with |
with |
|
Max. Fork Height |
(mm) |
205 |
205 |
205 |
205 |
|
Min. Fork Height |
(mm) |
85 |
85 |
85 |
85 |
|
Fork Length |
(mm) |
1150 |
1150 |
1150 |
1150 |
|
Width Overall Forks |
(mm) |
555 |
690 |
555 |
690 |
|
Fork Width |
(mm) |
180 |
180 |
180 |
180 |
|
Net Weight |
(kg) |
117 |
120 |
118 |
121 |
| 3” (75mm) lowered fork height available. |
| Specification | ||
| Capacity 2000kg | ||
| Graduation 1kg | Printer Type | :Thermal |
| Accuracy 0.1% of the weight applied to the scale | Functions | :Manual paper feed |
| High contyast display with wegment height of 18 mm. | Warning indications by LED | :Low battery |
| Summation and sequence number giving the number of weights totalised | :No paper | |
| Auto tare giving the net weight added to or taken from the scale. | :Temperature too low | |
| Touch panel with push buttons with metal dome, | ||
| tactile feel gives optimal users interface. | Paper | :Thermal roll |
| Totally sealed design to the norm IP 65 (NEMA 4), | :diameter 40mm | |
| easy to wash down. | Print speed | |
| Operating temperature is -10° to +40°C | :13 lines per second | |
| According to ROSH directive and conforms to EN1752-2. | Operating temperature | :0° to 50°c |
