Work Positioners
Product Model :
|
Work Positioners M / E series
* Stronger motor, Larger battery 12Ah, Low voltage protection.
A range of highly manoeuvrable, lightweight lifts, designed to take the strain out of any
lifting job from ground level to over shoulder height.
Ideal for use in narrow aisles and confined spaces. Perfect for all applications from
pharmaceutical to catering, from packing line to food processing, from warehouse to
office, kitchens, laboratories, retail outlets, etc...

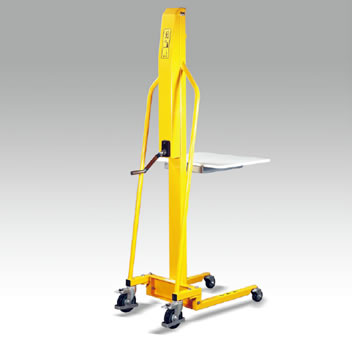

* Manual models: Operated via a manual hand winch.
Auto brake system prevents uncontrolled lowering.
* Electric models: Automatic electronic overload protection system ensures safety.
Maintenance free and sealed batteries, automatic charger.

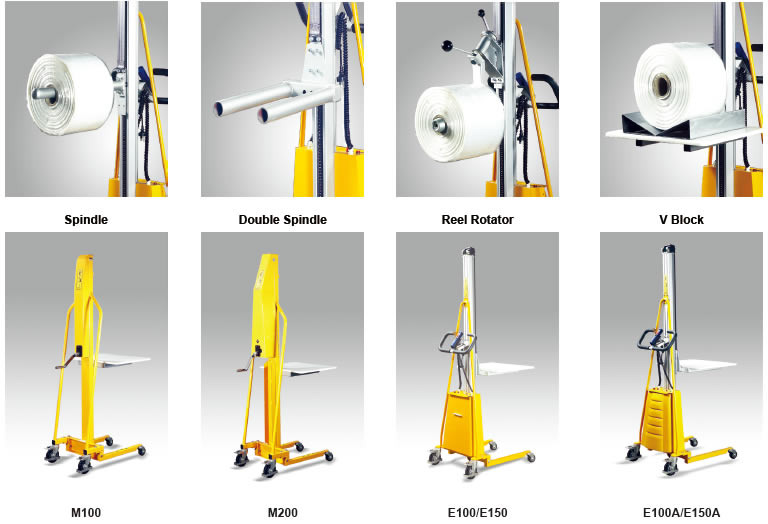

* Quick change attachment options available.
* Conforms to EN1757, CE marked.
Model |
|
M100 |
M200 |
E100 |
E150 |
Type |
|
Manual |
Manual |
Electric |
Electric |
Capacity |
(kg) |
100 |
200 |
100 |
150 |
Load Centre |
(mm) |
235 |
235 |
235 |
235 |
Max. Fork Height |
(mm) |
1500 |
1500 |
1700 |
1500 |
Min. Fork Height |
(mm) |
130 |
130 |
130 |
130 |
Platform Size |
(mm) |
470x600 |
470X600 |
470x600 |
470X600 |
Overall Size |
(mm) |
840x600x1830 |
870x600x1920 |
870x600x1990 |
870x600x1790 |
Load Wheel |
(mm) |
Φ75 |
Φ75 |
Φ75 |
Φ75 |
Steering Wheel |
(mm) |
Φ125 |
Φ125 |
Φ125 |
Φ125 |
Battery, Service Free |
|
— |
— |
24V/12Ah |
24V/12Ah |
Net Weight |
(kg) |
50 |
60 |
66 |
63 |
