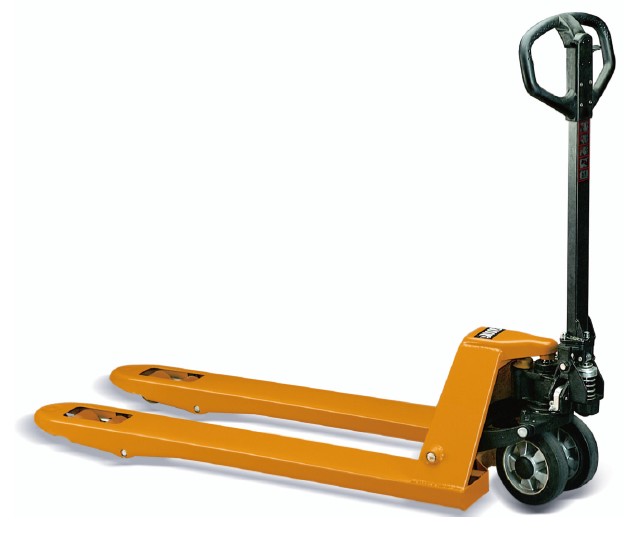

Hand Pallet Truck
Product Model :
|
Hand Pallet Truck BST series
* Quick lift !
Within 2 strokes, pallet is ready to be moved.
Highly efficient achieve maximum lift height in half the time.
Pump automatically switches to normal operation when load exceeds 150kg.
* Three years warranty pump !
Unique double seals design ensures longer life than standard pump.
Quick and easy-change cassette valve system with overload protection.

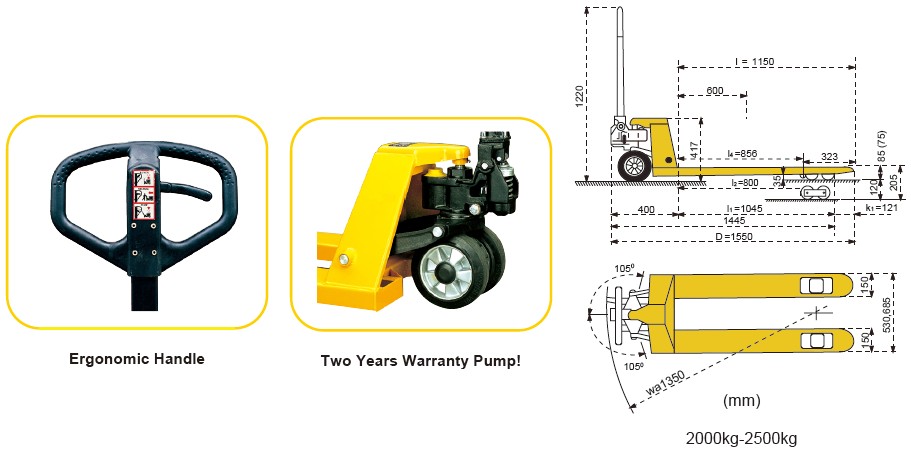

* Ergonomic handle!
Perfectly ergonomic designed handle offers a comfortable trip in all temperatures
and more lifting height per stroke then normal handle.
* New fork design !
Ensures 25% more strength than standard fork. The truck can be used frequently
in toughest conditions.
* New adjustable push rod !
Extremely easy to adjust push rod without turn the truck.
* Self-lubricating bearings !
Ensures long lift and repairable of the truck.
* Additional entry and exit rollers:
Offer easier entry and exit from pallet and protect load wheels as well.
* Conforms to EN1757-2.
Model |
|
BST2053 |
BST2068 |
BST2553 |
BST2568 |
BST3054 |
BST3068 |
Capacity |
kg |
2000 |
2000 |
2500 |
2500 |
3000 |
3000 |
Max. Fork Height |
mm |
205 (or 195) |
205 (or 195) |
205 (or 195) |
205 (or 195) |
205 (or 195) |
205 (or 195) |
Min. Fork Height |
mm |
85 (or 75) |
85 (or 75) |
85 (or 75) |
85 (or 75) |
85 (or 75) |
85 (or 75) |
Fork Length |
mm |
1150 |
1220 |
1150 |
1220 |
1150 |
1220 |
Individual Fork Width |
mm |
150 |
150 |
150 |
150 |
160 |
160 |
Width Overall Forks |
mm |
530 |
685 |
530 |
685 |
540 |
680 |
Net Weight |
kg |
75 |
78 |
77 |
80 |
85 |
88 |
