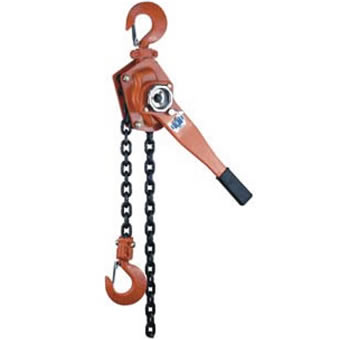

Lever Hoist HSH-A
Product Model :
|
Lever Hoist HSH-A
* Heavy duty and compact design.
* Low effort to lift maximum load.
* Fully forged hooks.
* Extra thick asbestos free friction discs.
* High grade alloy load chain.
* Durable baked enamel paint protection.
* Conform to CE safety standard.
|
Model |
|
HSH-075A |
HSH-150A |
HSH-300A |
HSH-600A |
HSH-900A |
|
Capacity |
(kg) |
750 |
1500 |
3000 |
6000 |
9000 |
|
Standard lift |
(m) |
1.5 |
1.5 |
1.5 |
1.5 |
1.5 |
|
Running test load |
(Kn) |
11 |
22.5 |
37.5 |
75 |
112.5 |
|
Effort required to lift rated load |
(N) |
140 |
220 |
320 |
340 |
360 |
|
Strands of load chain |
1 |
1 |
1 |
2 |
3 |
|
|
Load chain diameter |
(mm) |
6 |
8 |
10 |
10 |
10 |
|

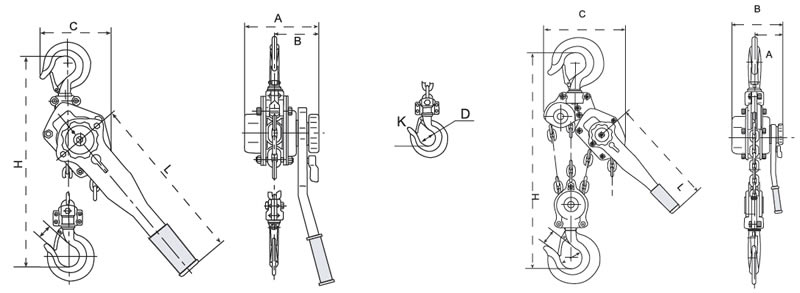

Dimensions |
A (mm) |
145 |
175 |
203 |
203 |
203 |
|
B (mm) |
86 |
100 |
118 |
118 |
118 |
|
|
C (mm) |
122 |
130 |
150 |
205 |
316 |
|
|
D (mm) |
37 |
45 |
50 |
64 |
85 |
|
|
H (mm) |
320 |
380 |
480 |
620 |
700 |
|
|
L (mm) |
285 |
370 |
410 |
410 |
410 |
|
|
K (mm) |
30 |
36 |
40 |
50 |
58 |
|
|
Net weight |
(kg) |
7.5 |
11.5 |
21 |
31.5 |
47 |
