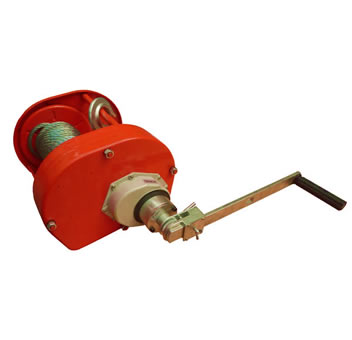

Manual Winch CHW Series
Product Model :
|
Manual Winch CHW Series
* The gear box is designed with close structure to avoid the foreign body entering into gear
box or braking mechanism in operation, and affect normal operation. With more safe in use.
* To adopt double friction discs, new braking pawl and change over ratchet mechanism
ensuring the stability of braking and saving efforts when using the handle. The winch is
applied in the special condition as the friction disc is made of the raw material of environment
protection.
* The connection of handle is fitted with change over ratchet. During the operation,
according the working need, the winch may be turned circle by transforming the pawl and
also operate the handle back and forth in any position and angle of the circle. To let turning
operation change to levering operation. The winch is more advantage in the narrow space.
* The handle is adopted freely structure and may free adjust the length of handle to safe the
effort when necessary.
* The large drum may contain more cable, which is more suitable for pulling, dragging,
lifting and lowering the goods in the long distance.
|
Model |
CHW05 |
CHW10 |
CHW20 |
CHW30 |
|
|
Capacity(t) |
0.5 |
1 |
2 |
3 |
|
|
S.W.L(KN) |
0.5 |
1 |
2 |
3 |
|
|
Test Load(KN) |
6.125 |
12.25 |
24.5 |
36.75 |
|
|
Cable dia.(mm)*L.(m) |
Φ6.3×40 |
Φ8×40 |
Φ9×40 |
Φ12.5×40 |
|
|
Speed Ratio |
4.33:1 |
12.19:1 |
22.68:1 |
29.16:1 |
|
|
The max. handle lengh(mm) |
350 |
350 |
350 |
350 |
|
|
Hang pressure load(N) |
102 |
120 |
120 |
120 |
|
|

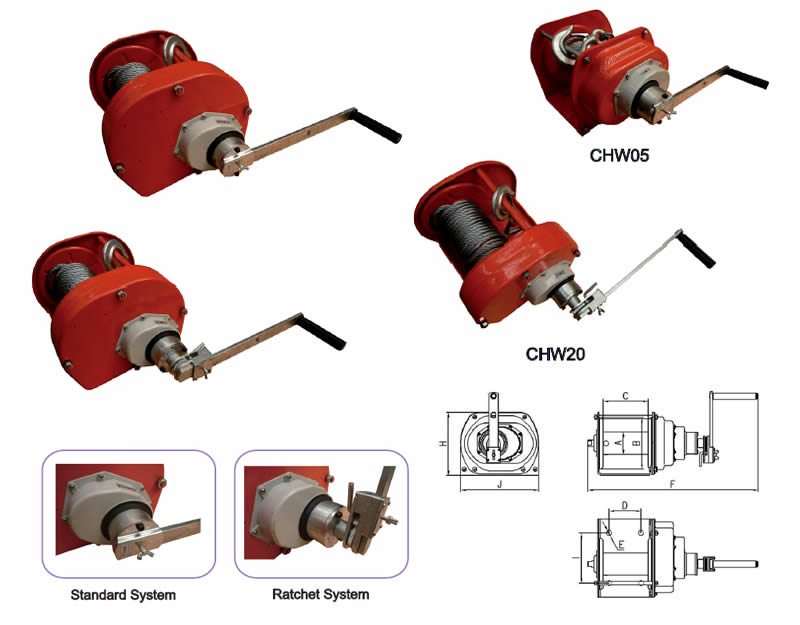

Overall dimension(mm) |
A |
Φ60 |
Φ76 |
Φ90 |
Φ100 |
|
B |
Φ140 |
Φ175 |
Φ190 |
Φ230 |
|
|
C |
150 |
154 |
195 |
205 |
|
|
D |
100 |
110 |
155 |
155 |
|
|
E |
Φ15 |
Φ18 |
Φ18 |
Φ18 |
|
|
F |
403 |
443 |
490 |
549 |
|
|
H |
182 |
214 |
230 |
296 |
|
|
I |
130 |
170 |
170 |
170 |
|
|
J |
245 |
266 |
300 |
365 |
|
|
Net Weight(Kg) |
14.4 |
19.7 |
25.1 |
44.3 |
|
