Type
Hook or Eye

S.W.L
(t)

Sheave Dia
 D (mm)

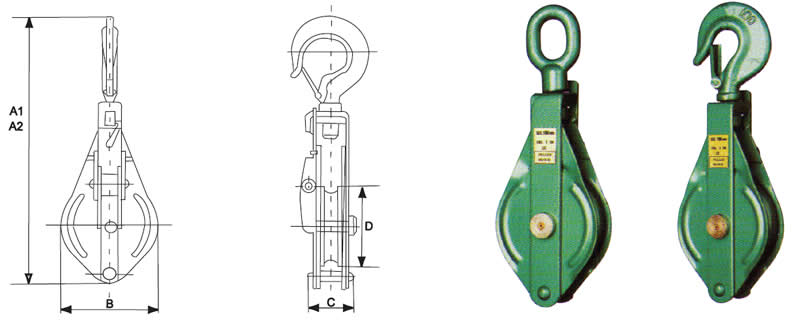

Dimensions (mm)

For Wire
Dia (mm)

N.W
(kg)

Hook A1

Eye A2

B

C

PBA75x1S

0.5

75

268

227

87

50

8

1.5

PBA100x1S

1

100

311.5

284.5

112

55.5

10

2.6

PBA125x1S

1.5

125

370

344

140

63.5

13

4.8

PBA150x1S

2

150

442.5

417

168

101

16

7.4

PBA180x1S

3

180

498

478

204

107

19

11.9

PBA200x1S

4

200

590.5

556

226

128

22

20.4

PBA250x1S

5

250

590.5

651

276

147

25

33

PBA300x1S

6

300

795

775

330

162

26

48

PBA350x1S

10

350

934

898

395

178

28

66
