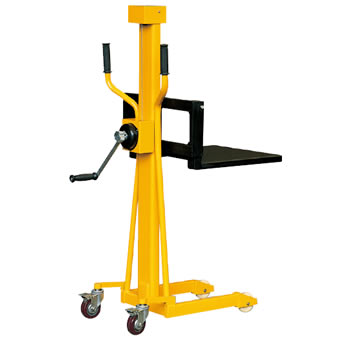

Mini Winch Stacker
Product Model :
|
Mini Winch Stacker LS series
* Robust, lightweight, steel construction.
* Manoeuvrable, extremely easy to use.
* Cable winch lifting system with fully cable housing.

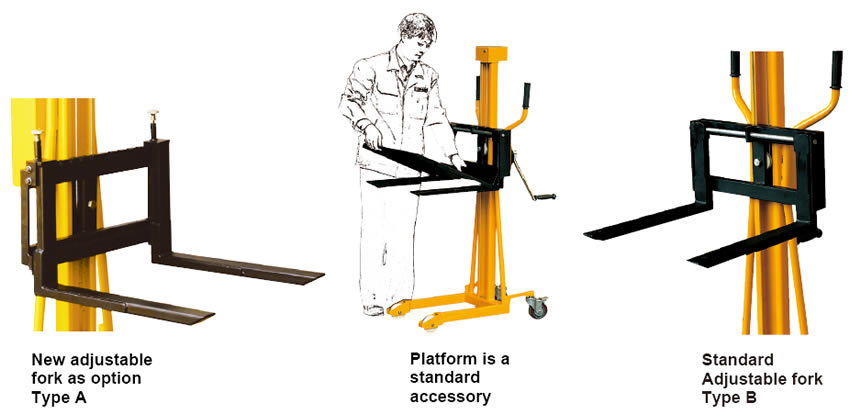

* Adjustable fork from 132mm to 520mm.
* Platform is a standard accessory.
|
Model |
|
LS80 |
LS150 |
|
Capacity |
(kg) |
80 |
150 |
|
Load Centre |
(mm) |
250 |
250 |
|
Lifting Height |
(mm) |
1100 |
1100 |
|
Straddle Leg Height |
(mm) |
100 |
100 |
|
Min. Fork Height |
(mm) |
70 |
70 |
|
Fork Length |
(mm) |
500 |
500 |
|
Individual Fork Width |
(mm) |
50 |
50 |
|
Platform Size |
(mm) |
500×530×90 |
500×530×90 |
|
Over Adjustable Fork Width |
(mm) |
132-520 |
132-520 |
|
Effort Force with Load |
(N) |
82 |
106 |
|
Load Wheel |
(mm) |
Φ100×30 |
Φ100×30 |
|
Steering Wheel |
(mm) |
Φ100×30 |
Φ100×30 |
|
Overall Dimensions |
(mm) |
865×550×1470 |
830×580×1475 |
|
Net Weight |
(kg) |
52 |
62 |
| Important: Forks MUST be in Max. fork width position when fit platform on two forks. | |||
