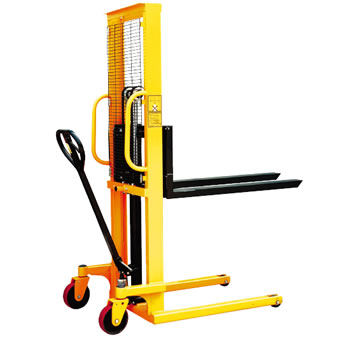

Hand Stacker
Product Model :
|
Hand Stacker PZ series
* Latest technology of hydraulic pump with less effort force. Top quality German seal kit.
* Heavy duty 1 piece “C” section forks for greatest strength.
* Option adjustable forks for wider applications.
* PZ series is economic range but reliable.
* Conforms to EN1757-1.
|

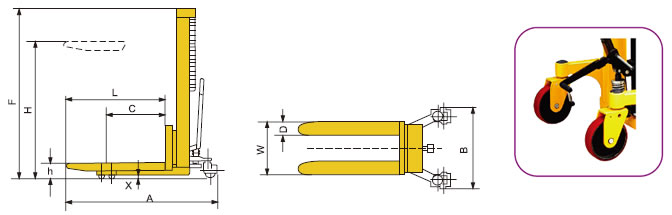

Model |
|
PZ1015 |
PZ1515 |
PZ2015 |
|
Capacity |
(kg) |
1000 |
1500 |
2000 |
|
Load Centre |
C (mm) |
500 |
500 |
500 |
|
Max. Fork Height |
H (mm) |
1500 |
1500 |
1500 |
|
Min. Fork Height |
h (mm) |
80 |
85 |
85 |
|
Fork Length |
L (mm) |
1150 |
1150 |
1150 |
|
Fork Width |
D (mm) |
100 |
120 |
120 |
|
Overall Fork Width |
W (mm) |
224-730 |
252-900 |
252-900 |
|
Lifting Height Per Stroke |
(mm) |
12.5 |
9 |
7 |
|
Ground Clearance |
X (mm) |
23 |
24 |
24 |
|
Min. turning Radius(outside) |
(mm) |
1250 |
1350 |
1350 |
|
Front Load Roller |
(mm) |
Φ80×43 |
Φ80×70 |
Φ80×70 |
|
Steering Wheel |
(mm) |
Φ180×50 |
Φ180×50 |
Φ180×50 |
|
Overall Length |
A (mm) |
1660 |
1715 |
1765 |
|
Overall Width |
B (mm) |
700 |
940 |
940 |
|
Overall Height |
F (mm) |
1998 |
1980 |
1980 |
|
Net Weight |
(kg) |
180 |
252 |
284 |
| Note: Materials and specification are subject to change without notice. | ||||
