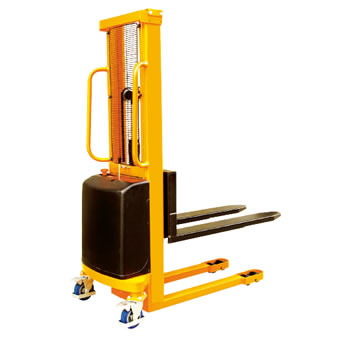

Semi-Electric Stacker
Product Model :
|
Semi-Electric Stacker MS·A series
* Compact design and reliable mast construction.
* Safely guard on load roller and steering wheel.
* Light and easy manual steering system.
* Conforms to EN1757-1 : 2001, EN1727
|

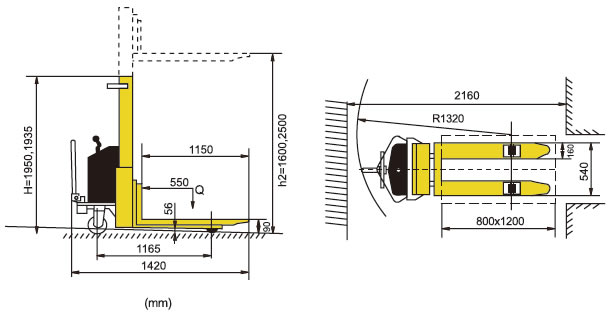

Model |
|
MS1016A |
MS1025A |
|
Capacity |
(kg) |
1000 |
1000 |
|
Max.Fork Height |
(mm) |
1600 |
2500 |
|
Min.Fork Height |
(mm) |
90 |
90 |
|
Overall Length |
(mm) |
1420 |
1420 |
|
Overall Width |
(mm) |
780 |
780 |
|
Overall Height |
(mm) |
1950 |
1935 (two stage mast) |
|
Fork Length |
(mm) |
1150 |
1150 |
|
Fork Overall Width |
(mm) |
540 |
540 |
|
Single Fork Width |
(mm) |
160 |
160 |
|
Front Wheel |
(mm) |
Nylon Φ78×80 |
Nylon Φ78×80 |
|
Rear Roller |
(mm) |
PU Φ150×38 |
PU Φ150×38 |
|
The Distance between The Two Rear Roller |
(mm) |
595 |
680 |
|
Battery |
(Ah/V) |
100/12 |
120/12 |
|
Weight of Battery |
(kg) |
29 |
38 |
|
Motors |
(KW/V) |
1.5/12 |
1.5/12 |
|
Lifting Speed(with & without load) |
(mm/s) |
62/118 |
62/118 |
|
Lowering Speed(with & without load) |
(mm/s) |
106/84 |
106/84 |
|
Net Weight (without battery) |
(kg) |
245 |
320 |
|
Steering Handle |
O |
O |
