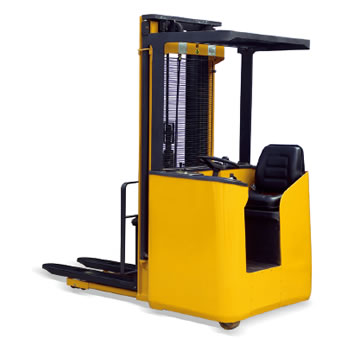

Side Drive Stacker
Product Model :
|
Side Drive Stacker WT series
* For sit-down operation.
Advanced Curtis control on traction.
Advanced SEM drive motor.
* Operator comfort.
Low effort steering wheel control.
Smooth lift / lowering operation via fingertip control lever.
Heavy duty mast with durable mesh guard for optimum visibility.
Automatic style pedal lay-out.
* Performance with efficiency.
Curtis traction controller for energy efficient operation stepless progressive speed control, automatic
release braking, regenerative braking and adjustable speed reduction when cornering.
SEM drive motor technology for high performance travel speeds and superior speed control.
The steering angle of 90° in each direction further enhances maneuverability. These specifications
ensure improved safety clearances in confined spaced with high loading. Low noise, less pollution
and energy saving, these features all satisfied with environment protection.
* Conforms to EN1757, EN1727.
|
Model |
|
WT1216 |
WT1224 |
WT1529 |
WT1533 |
WT1545 |
|
Capacity |
(kg) |
1200 |
1200 |
1500 |
1500 |
1500 |
|
Max. lifting height |
H3 (mm) |
1600 |
2450 |
2900 |
3300 |
4500 |
|
Min. terrain clearance |
(mm) |
90 |
||||
|
Overhead guard height |
(mm) |
2020 |
||||
|
Overall length |
(mm) |
2120 |
||||
|
Overall width |
(mm) |
840 |
||||
|
Overall height |
H6 (mm) |
2090 |
1800 |
2025 |
2220 |
2210 |
|
H4 (mm) |
2246 |
3096 |
3546 |
3946 |
5375 |
|
|
Fork length |
(mm) |
1150 |
||||
|
Fork width |
(mm) |
540 |
||||
|
Single fork width |
(mm) |
160 |
||||
|
Front wheel |
(mm) |
Φ78×70 |
||||
|
Balance wheel |
(mm) |
Φ150×75 |
||||
|
Drive wheel |
(mm) |
Φ250×80 |
||||
|
Min. turning radius Wa |
(mm) |
1700 |
||||
|
Storage battery |
(Ah/V) |
200/24 |
||||
|
Weight of battery |
(kg) |
162 |
||||
|
Motor |
Traveling (KW/V) |
2.2/24 |
||||
|
Lifting (KW/V) |
3.0/24 |
|||||
|
Traveling speed (Loaded/Unloaded) |
(mm/s) |
1.64/1.95 |
||||
|
Restoring speed (Loaded/Unloaded) |
(mm/s) |
1.61/1.80 |
||||
|
Lifting speed (Loaded/Unloaded) |
(mm/s) |
96/135 |
||||
|
Lowering speed (Loaded/Unloaded) |
(mm/s) |
201/197 |
||||
|
Net weight |
(kg) |
959 |
1016 |
1038 |
1060 |
1080 |
