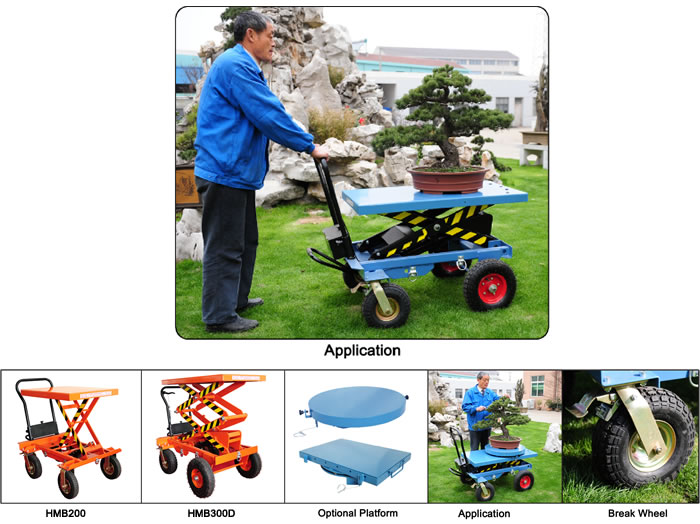

Garden Lift Table
Product Model :
|
* Heavy duty range
* Handle with tool box neumatic tires with brake system
* New design to meet norm EN1570: 1999
* New hydraulic system with overload valve
|
Model |
HMB200 |
HMB300 |
HMB500 |
HMB750 |
HMB501 |

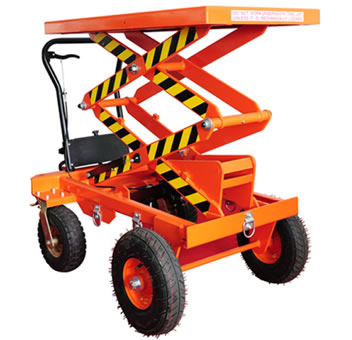

HMB300D |
|
|
Type |
|
Single Scissor |
Single Scissor |
Single Scissor |
Single Scissor |
Single Scissor |
Double Scissor |
|
Capacity |
(kg) |
200 |
300 |
500 |
700 |
500 |
300 |
|
Table Height |
(mm) |
380/870 |
410/1000 |
545/1110 |
545/1110 |
345/1180 |
545/1700 |
|
Table Height with Option Platform |
(mm) |
458/948 |
488/1078 |
630/1195 |
630/1195 |
423/1258 |
630/1785 |
|
Handle Height |
(mm) |
910 |
975 |
975 |
975 |
975 |
975 |
|
Table Size |
(mm) |
700×520 |
850×520 |
1010×520 |
1010×520 |
1220×610 |
1010×520 |
|
Option Platform Size |
(mm) |
Φ600 |
Φ600 |
710×500 |
710×500 |
Φ600 |
710×500 |
|
Overall Size |
(mm) |
922×690×910 |
1065×690×975 |
1200×720×975 |
1270×720×975 |
1583×800×975 |
1270×720×975 |
|
Front Pneumatic Tires |
(mm) |
Φ200 |
Φ200 |
Φ330 |
Φ330 |
Φ300 |
Φ330 |
|
Real Pneumatic Tires |
(mm) |
Φ200 |
Φ200 |
Φ250 |
Φ250 |
Φ200 |
Φ250 |
|
Foot Pedal |
(times) |
16 |
20 |
30 |
40 |
35/70 |
40 |
|
Net Weight w/o Option Platform |
(kg) |
60 |
85 |
126 |
130 |
175 |
145 |
|
Net Weight of Option Platform |
(kg) |
24 |
24 |
40 |
40 |
24 |
40 |
