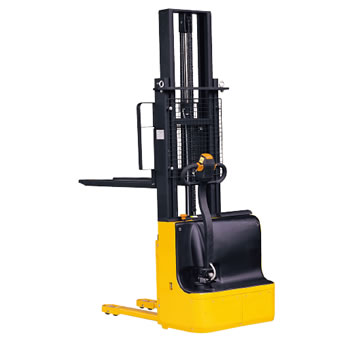

Full Electric Stacker
Product Model :
|
Full Electric Stacker FN series
* Tiller arm is mounted on one side for optimum control and visibility.
* High-comfort tiller grip reduces fatigue, improving productivity.
* Heavy-duty design with top quality mast construction.
* Powerful drive and power unit made in Europe.
* Top quality electronic control system from Curtis.
* Multi-function handle includes crawl button, butterfly travel speed
controls and lift/lower control offer variable speed adjustment.
* Conforms to EN1757-1:2001, EN 1726.
|
Model |
|
FN1225AC |
FN1229AC |
FN1233AC |
FN1525AC |
FN1529AC |
FN1533AC |
|
Capacity |
(kg) |
1200 |
1200 |
1200 |
1500 |
1500 |
1500 |
|
Lifting Height |
(mm) |
2450 |
2900 |
3300 |
2450 |
2900 |
3300 |
|
Min. Fork Height |
(mm) |
90 |
90 |
90 |
90 |
90 |
90 |
|
Load Centre |
(mm) |
600 |
600 |
600 |
600 |
600 |
600 |
|
Fork Length |
(mm) |
1150 |
1150 |
1150 |
1150 |
1150 |
1150 |
|
Fork Overall Width |
(mm) |
540 |
540 |
540 |
540 |
540 |
540 |
|
Driver Wheel |
Φ250mm, 1200W/24V (AC) |
||||||
|
Power Pack |
(KW/V) |
1.2/24 |
|||||
|
Traction Battery |
(Ah/V) |
165/24 |
|||||
|
Net Weight (kg) |
648 |
670 |
691 |
658 |
680 |
701 |
|
|

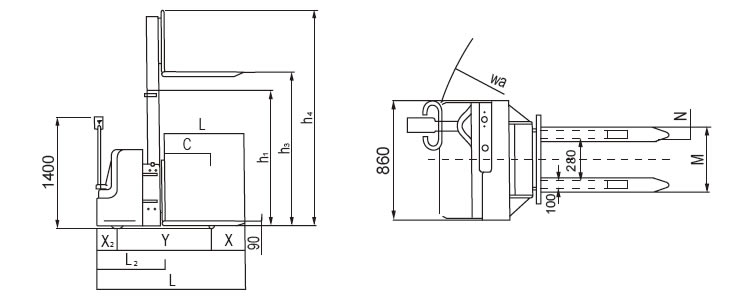

Dimension |
X2 (mm) |
190 |
190 |
190 |
190 |
190 |
190 |
|
L2 (mm) |
774 |
774 |
774 |
774 |
774 |
774 |
|
|
h1 (mm) |
1800 |
2025 |
2025 |
1800 |
2025 |
2025 |
|
|
h4 (mm) |
3094 |
3546 |
3946 |
3096 |
3546 |
3946 |
|
|
X (mm) |
455 |
455 |
455 |
455 |
455 |
455 |
|
|
Y (mm) |
1279 |
1279 |
1279 |
1279 |
1279 |
1279 |
|
|
L (mm) |
1924 |
1924 |
1924 |
1924 |
1924 |
1924 |
|
|
N (mm) |
160 |
160 |
160 |
160 |
160 |
160 |
|
|
h3 (mm) |
2450 |
2900 |
3300 |
2450 |
2900 |
3300 |
|
|
Wa (mm) |
1540 |
1540 |
1540 |
1540 |
1540 |
1540 |
|
