Electric Lift Table
Product Model :
|

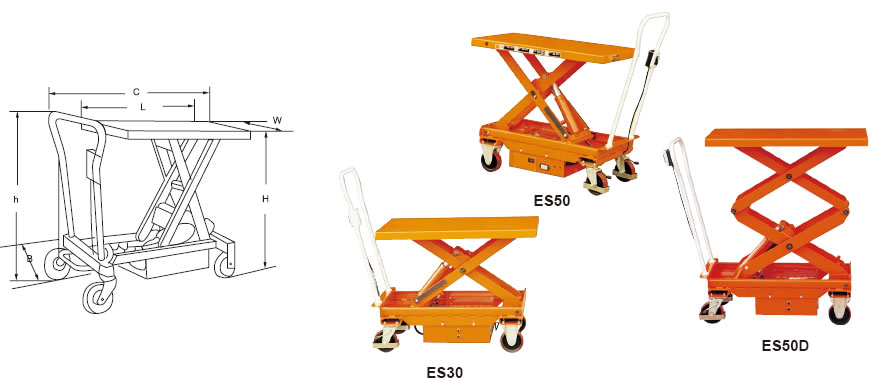

Electric Lift Table ES series
Lifts heavy loads with ease
* Robust structure yet lightweight
* Two brakes increase safety
* Power unit made in Europe DC 700W
* High quality battery 75Ah/12V
* Automatic battery charger
* Wheel and roller diameter 150mm
* Handle height 1185mm.jpg)
| Model | Capacity | Table Size | Table Height | Lifting Cycle | Wheel Dia. | Lifting/Lowering Time | Overall Size | Net Weight |
| (kg) | LxW (mm) | H (Min./Max.)(mm) | Fully Charged | (mm) | (second) | (mm) | (kg) | |
| ES30 | 300 | 1010x520 | 450/950 | 65 | Φ100 | 15/15 | 520x1010 | 140 |
| ES50 | 500 | 1010x520 | 450/950 | 55 | Φ150 | 15/15 | 520x1010 | 148 |
| ES75 | 750 | 1010x520 | 450/950 | 45 | Φ150 | 15/15 | 520x1010 | 154 |
| ES100 | 1000 | 1010x520 | 480/950 | 40 | Φ150 | 15/15 | 520x1010 | 169 |
| ES30D | 300 | 1010x520 | 495/1600 | 45 | Φ150 | 15/15 | 520x1010 | 183 |
| ES50D | 500 | 1010x520 | 495/1618 | 40 | Φ150 | 15/15 | 520x1010 | 198 |
| ES80D | 800 | 1010x520 | 510/1460 | 40 | Φ150 | 15/15 | 520x1010 | 208 |
