Transfer Lift Table
Product Model :
  • BT20
  • BT45
  • BT70
  • BT100
  • BE45
  • BE70
  • BE100
  • BE45L

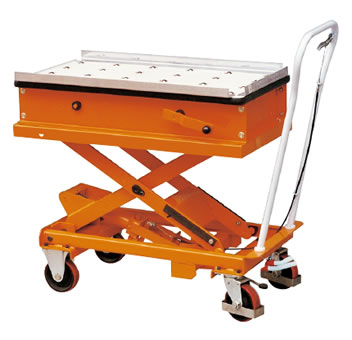

Transfer Lift Table      BT / BE series

* More easier for loading and unloading operations by means of ball transfer unit. As the
   steel balls are raised, the goods on table are very easy to move into or move away.
* As the steel balls are lowered, the goods stay on table firmly.
* Electric version: 700W DC power pack.

 Model

 BT20

 BT45

 BT70

 BT100

 BE45

 BE70

 BE100

 BE45L

 Type

 Manual

 Electric

 Capacity

 (kg)

 200

 450

 700

 1000

 450

 700

 1000

 450

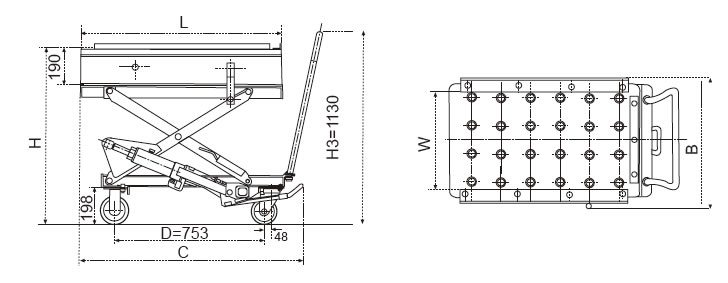

 Table Size

 LxW (mm)

 820x500

 550x1006

 550x1006

 550x1006

 550x1006

 550x1006

 550x1006

 672x1516

 Table Height

 Hmin/Hmax (mm)

 520/1000

 632/1185

 632/1150

 647/1140

 640/1140

 670/1140

 670/1140

6191329

 Handle Height

 H3 (mm)

 1100

 1130

 1130

 1130

 1130

 1130

 1130

 1130

 Wheel Diameter

 (mm)

 Φ125

 Φ150

 Φ150

 Φ150

 Φ150

 Φ150

 Φ150

 Φ150

 Overall Size

 BxC (mm)

 560x1010

 580x1185

 580x1260

 580x1260

 580x1185

 580x1260

 580x1260

 672x1780

 Stroke to Max.Height

 30

 65

 75

 75









 Lifting Speed

 (s)









 15

 15

 15

 15

 Net Weight

 (kg)

 105

 153

 155

 172

 183

 169

 204

 273
