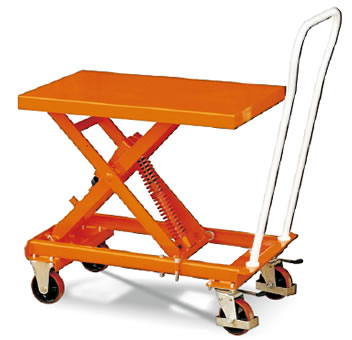

Spring Lift Table
Product Model :
|
Spring Lift Table BC series
* Self-leveling, fully adjustable, weight sensitive!
* Designed to maintain an ideal working height for assembly lines and
loading/unloading operations.
* Balance to achieved by double springs fitted to the shock absorbers.
* Simple to operate spring tension adjustment.
|
Model |
|
BC21 |
BC40 |
|
Capacity |
(kg) |
210 |
400 |
|
Loading Range |
(kg) |
80-210 |
100-400 |
|
Table Size |
LxW (mm) |
830x500 |
1010x520 |
|
Table Height |
(Min/Max) (mm) |
360/770 |
440/800 |
|
Handle Height |
(mm) |
1100 |
1100 |
|
Wheel Dimeter |
(mm) |
Φ125 |
Φ125 |
|
Overall Size |
(mm) |
1065x500x1100 |
1200x500x1100 |
|
Net Wright |
(kg) |
75 |
123 |
