Lift & Tilt Table
Product Model :
|

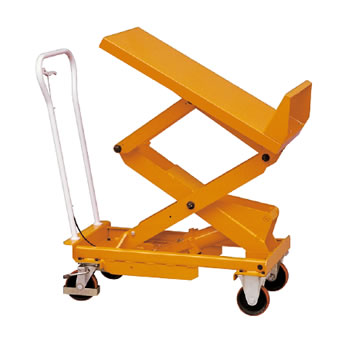

Lift & Tilt Table BL series
* The Lift &Tilt Tables are specifically designed to allow an operator to feed and unload parts from tote boxes or containers quickly and easily without lifting, bending, stretching, or reaching.
* When in its lift and tilt position, the unit holds totes or containers at a comfortable working height and angle that allows operators to easily reach parts even at the bottom of the container.
* The working table is elevated by means of a foot actuated hydraulic cylinder. As the table is raised, it automatically tilts to an angle of 45 at full elevation. Built-in retaining lip keeps containers in place.
|
Model |
BL15 |
BL40 |
BL80 |
|
|
Capacity |
(kg) |
150 |
400 |
800 |
|
Table Size |
TxW (mm) |
830x500 |
830x520 |
830x520 |
|

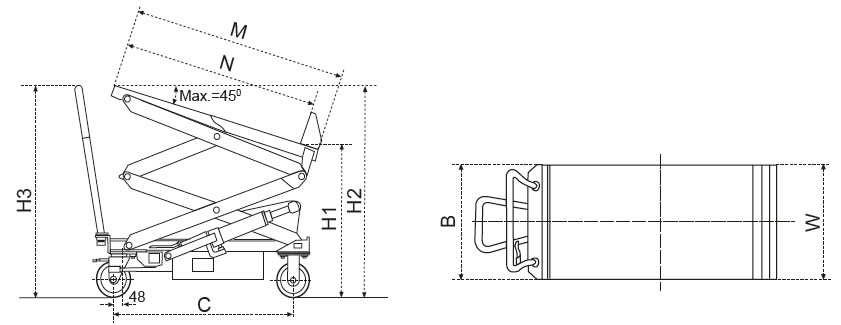

Dimensions |
M (mm) |
830 |
830 |
930 |
|
|
N (mm) |
748 |
830 |
830 |
|
Table Height |
H1(min/max) (mm) |
415/880 |
435/900 |
440/1000 |
|
H2(min/max) (mm) |
415/1400 |
435/1560 |
438/1570 |
|
|
Handle Height |
H3 (mm) |
1100 |
1130 |
1130 |
|
Wheel Dia. |
(mm) |
Φ125 |
Φ150 |
Φ150 |
|
Overall Size |
BxC (mm) |
500x1010 |
520x1355 |
520x1355 |
|
Foot Pedal to Max. Height |
20 |
55 |
80 |
|
|
Net Weight |
(kg) |
92 |
123 |
145 |
