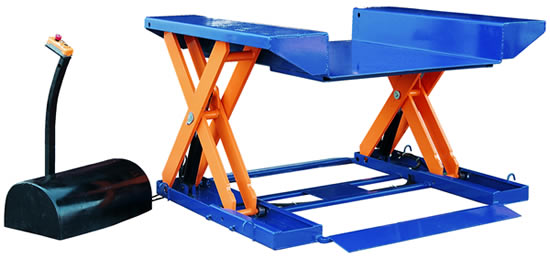

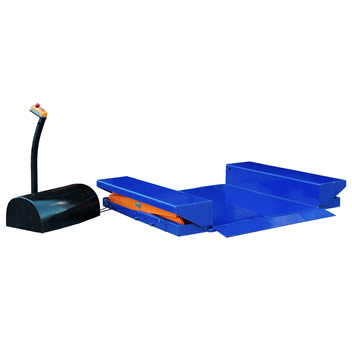

Super Low Profile Lift Table
Product Model :
|
Super Low Profile Lift Table HYL Series
* Heavy duty design with larger platform
* These tables achieve a low closed height, eliminating the need for a pit installation.
* They are manufactured to all European safety standards including EN1570:1999.
* Remote power pack with pedestal and controls, protected to IP54.
* Upper platform fitted with safety perimeter to prevent descent on contact with obstructions.
* 24V control box with UP and DOWN buttons and emergency stop.
* External power pack equipped with a relief valve against overloading and a compensated
flow valve for controlling lowering speed. Power supply are AC 380V/50HZ/3phase.
* Hose burst safety valve to stop the lift table lowering in case of hose breakage.
* Removable lifting eyes to facilitate handling and installation of the lift table.
* Oiless bushings on pivot points.
* Heavy duty design with larger platform
* These tables achieve a low closed height, eliminating the need for a pit installation.
* They are manufactured to all European safety standards including EN1570:1999.
* Remote power pack with pedestal and controls, protected to IP54.
* Upper platform fitted with safety perimeter to prevent descent on contact with obstructions.
* 24V control box with UP and DOWN buttons and emergency stop.
* External power pack equipped with a relief valve against overloading and a compensated
flow valve for controlling lowering speed. Power supply are AC 380V/50HZ/3phase.
* Hose burst safety valve to stop the lift table lowering in case of hose breakage.
* Removable lifting eyes to facilitate handling and installation of the lift table.
* Oiless bushings on pivot points.
|
Model |
Capacity |
Platform Size |
Min. Height |
Max. Height |
Power Pack |
Net Weight |
|
(kg) |
LXW(mm) |
(mm) |
(mm) |
(kg) |
||
|
HYL501 |
500 |
1750×1270 |
25 |
800 |
380V/50HZ,AC 1.1kw |
450 |
|
HYL751 |
750 |
1750×1270 |
25 |
800 |
380V/50HZ,AC 1.1kw |
485 |
|
HYL1001 |
1000 |
1750×1270 |
35 |
800 |
380V/50HZ,AC 1.1kw |
510 |
|
HYL1501 |
1500 |
1750×1270 |
35 |
800 |
380V/50HZ,AC 2.2kw |
540 |
