Mobile- Karrier
Product Model :
|

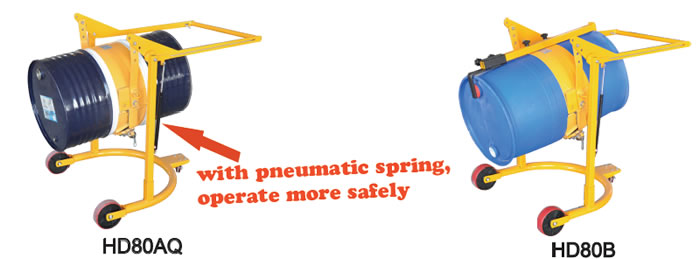

Mobile- Karrier HD80AQ·HD80B

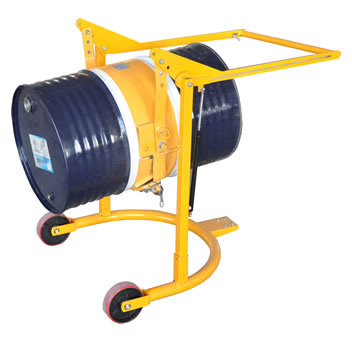

A truly quality-built drum handler.
Remarkable versatility! Mobile-karrier raises, transports, rotates, tilts and drains fully loaded drums.
It carries the full weight of the drum. Dual, fingertip operated locks secure the raised drum.
It can lock a drum in vertical position to avoid spills or horizontal position for draining through a faucet.
When unlocked, the drum may be turned end-over-end to agitate contents or tipped and held manually at any angle.
And it is very simple to move and steer on its 8” polyurethane roller bearing wheels and 4” swivel caster.
It is shipped partly disassembled to save freight costs.
Model |
|
HD80AQ |
HD80B |
Lifting Capacity |
(kg/lbs) |
365/800 |
365/800 |
Lifting Height (Vertical) |
(mm) |
180 |
180 |
Lifting Height (Horizontal) |
(mm) |
457 |
457 |
Drum Size |
Steel Drum Φ572600mm, |
Steel Drum Φ572600mm,(55 gallon) |
|
Operation |
Manual Operation 90°~180° |
Manual Operation 90°~180° |
|
Fork Width (Inside) |
(mm) |
750 |
750 |
Dia of Front Wheel |
(mm) |
Φ180 |
Φ180 |
Dia of Steering Wheel |
(mm) |
Φ75 |
Φ75 |
Overall Dimension |
(mm) |
940×885×1180 |
940×885×1180 |
Net Weight |
(kg) |
42 |
48 |
